Share This Product:

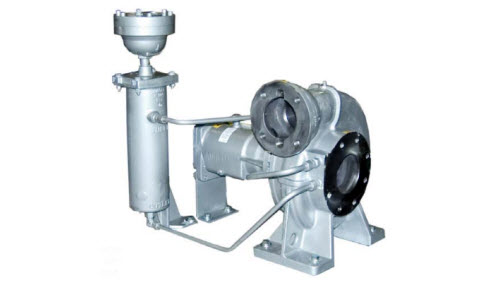

Size: 4" x 3" (102 mm x 76 mm) Flanged.Casing: (RD3A31-BAR) Ductile Iron 65-45-12.(RD3A32-BAR) Cast Steel 70-36.Maximum Operating Pressure 127 psi (876 kPa).*Enclosed Type, Five Vane Impeller: Aluminum 356-T6.Handles 3/8" (9,5 mm) Diameter Spherical Solids.Impeller Shaft: Steel 1045.Rotor: Copper Alloy C93400.Bearing Housing: Ductile Iron 65-45-12.Bearing Housing Lubrication: Grease.Body Cover: (RD3A31-BAR) Ductile Iron 65-45-12.(RD3A32-BAR) Cast Steel 70-36.Center/Spacer Plate: (RD3A31-BAR) Ductile Iron 65-45-12.(RD3A32-BAR) Cast Steel 70-36.Radial Bearing: Permanently Sealed Single Row Ball Type.Thrust Bearing: Permanently Sealed Single Row Ball Type.Gaskets: Vegetable Fiber, PTFE and Cork.Priming: Rotary Vane Type Priming Pump.Air Release Valve : Cast Iron/Stainless Steel.Optional Equipment: Cast Steel 70-36 Threaded Suction and DischargeCompanion Flange Kit, Copper Alloy C93400 Impeller, Group Grind withCast Iron Rotor (RD3A31-BAR Only); Stainless Steel 416 Impeller Shaft,Buna-N Seal, PTFE Seal with Fluorocarbon O-Ring, PTFE Seal withBuna-N O-Ring, Oil Filled Bearing Housing Assembly. Extreme Duty AirRelease Valve (GRP33-08).*Consult Factory for Applications Exceeding Maximum Pressure and/orTemperature Indicated.
