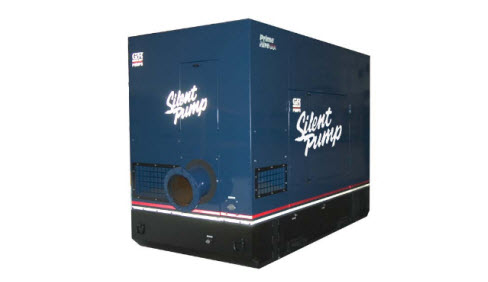

Gorman-Rupp PA10A60-4045H-ESP

Double tap to zoom



Features

Size: 10” x 10” (254 mm x 254 mm) Flanged.
Casing: Gray Iron 30.
Maximum Operating Pressure 98 psi (676 kPa).* Semi‐Open Type, Two Vane Impeller: Ductile Iron 65‐45‐12.
Handles 3.25” (82,6 mm) Diameter Spherical Solids.
Suction Spool: Gray Iron 30.
Impeller Shaft: Stainless Steel 17‐4 PH.
Externally Adjustable Front Wear Ring: Ductile Iron 80‐55‐06.
Intermediate: Gray Iron 30.
Seal Plate: Gray Iron 30.
Seal: Mechanical, Oil‐Lubricated, Double Floating, Self‐Aligning. Silicon
Carbide Rotating and Stationary Faces. Stainless Steel 316 Stationary
Seat. Fluorocarbon Elastomers (DuPont Viton or Equivalent). Stainless
Steel 316 Cage and Spring. Maximum Temperature of Liquid Pumped,
160F (71C).*
Priming Chamber: Gray Iron 30 Housing w/Stainless Steel Float and
Linkage.
Discharge Check Valve: Ductile Iron Housing w/Buna‐N Flapper.
Radial Bearing: Open Single Ball.
Thrust Bearing: Open Double Ball.
Bearing and Seal Cavity Lubrication: SAE 30 Non‐Detergent Oil.
Gaskets: Resistant Synthetic Rubber, PTFE, Cork, Vegetable Fiber, and
Compressed Synthetic Fibers.
O‐Rings: Buna‐N.
Hardware: Standard Plated Steel.
Bearing and Seal Cavity Oil Level Sight Gauges.
*Consult Factory for Applications Exceeding Maximum Pressure and/or
Temperature Indicated.

Specifications

Suction 10" (254 mm)
Discharge 10" (254 mm)
Solids Handling 3.25" (83 mm)
Material Cast Iron
Impeller Material Ductile Iron
Seal Material Silicon Carbide
Flange ASA
Drive Type Diesel Engine SP
