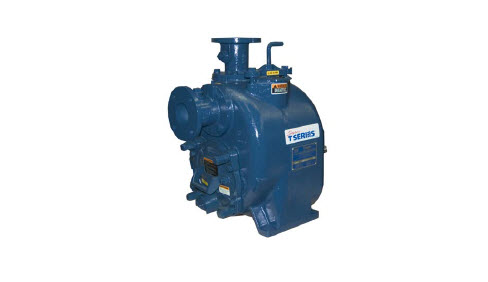

Size: 3” x 3” (76 mm x 76 mm) NPT ‐ Female.Casing: Stainless Steel CD4MCu. Maximum Operating Pressure 86 psi (593 kPa).*Semi‐Open Type, Two Vane Impeller: Stainless Steel CD4MCu. Handles 2 1/2” (63,5 mm) Diameter Spherical Solids.Impeller Shaft: Stainless Steel 17‐4 PH.Replaceable Wear Plate: Stainless Steel CD4MCu.Removable Adjustable Cover Plate: Stainless Steel CD4MCu; 40 lbs. (18 kg).Flap Valve: Fluorocarbon (DuPont Viton or Equivalent) w/Stainless Steel Reinforcing.Seal Plate: Stainless Steel CD4MCu.Bearing Housing: Stainless Steel CD4MCu.Radial and Thrust Bearings: Open Single Row Ball.Bearing and Seal Cavity Lubrication: SAE 30 Non‐Detergent Oil.Suction Flange: Stainless Steel CD4MCu.Discharge Flange: Stainless Steel 316.Gaskets: Fluorocarbon (DuPont Viton or Equivalent) and PTFE.O‐Rings: Fluorocarbon (DuPont Viton or Equivalent).Hardware: Stainless Steel 316.Pressure Relief Valve: Stainless Steel 316.Bearing and Seal Cavity Oil Level Sight Gauges.Optional Equipment: Automatic Air Release Valve. Metal Bellows Seal. 120V/240V Casing Heater. High Pump Temperature Shutdown Kit. Self‐Cleaning Wear Plate. Stainless Steel CD4MCu Suction and DischargeSpool Flanges:3” ASA (Specify Model T3A65S‐B /F). 80 mm DIN 2527 (PN 16) (Specify Model T3A65S‐B /FM).*Consult Factory for Applications Exceeding MaximumPressure and/or Temperature Indicated.
