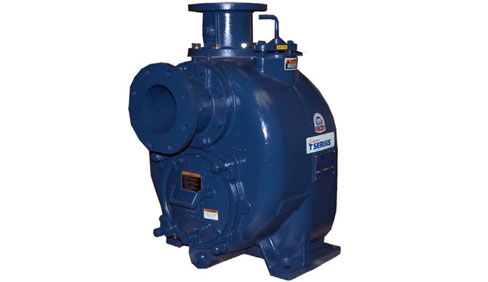

Gorman-Rupp T6A3S-B /F

Double tap to zoom



Features

Size: 6” x 6” (152 mm x 152 mm) NPT ‐ Female.
Casing: Gray Iron 30. Maximum Operating Pressure 79 psi (545 kPa).*
Semi‐Open Type, Two Vane Impeller: Ductile Iron 65‐45‐12. Handles 3” (76,2 mm) Diameter Spherical Solids.
Impeller Shaft: Alloy Steel 4150.
Shaft Sleeve: Alloy Steel 4130.
Replaceable Wear Plate: Carbon Steel 1026.
Removable Adjustable Cover Plate: Gray Iron 30; 62 lbs. (28 kg).
Flap Valve: Neoprene w/Nylon and Steel Reinforcing.
Seal Plate: Gray Iron 30.
Bearing Housing: Gray Iron 30.
Radial Bearing: Open Single Row Ball.
Thrust Bearing: Open Double Row Ball.
Bearing and Seal Cavity Lubrication: SAE 30 Non‐Detergent Oil.
Flanges: Gray Iron 30.
Gaskets: Buna‐N, Compressed Synthetic Fibers, PTFE, Vegetable Fiber, Cork, and Rubber.
O‐Rings: Buna‐N.
Hardware: Standard Plated Steel.
Brass Pressure Relief Valve.
Bearing and Seal Cavity Oil Level Sight Gauges.
Optional Equipment: Metal Bellows Seal. Automatic Air Release Valve. 120V/240V Casing Heater. High Pump Temperature Shutdown Kit. G‐R Hard Iron Casing. Self‐Cleaning Wear Plate.
Gray Iron 30 Suction and Discharge Spool Flanges:
6” ASA (Specify Model T6A3S‐B /F).
150 mm DIN 2527 (PN16) (Specify Model T6A3S‐B /FM).
*Consult Factory for Applications Exceeding Maximum Pressure and/or Temperature Indicated.

Specifications

Suction 6" (152 mm)
Discharge 6" (152 mm)
Solids Handling 3" (76 mm)
Solids Handling Cast Iron
Impeller Material Ductile Iron
Seal Material Tungsten Carbide
Flange ASA Spool
Drive Type Basic
