Gorman-Rupp T6A60S-4045T-ESP

Double tap to zoom



Features

Size: 6” x 6” (152 mm x 152 mm) NPT Male.
Casing: Gray Iron 30. Maximum Operating Pressure 98 psi (675 kPa).*
Semi‐Open Type, Two Vane Impeller: Ductile Iron 65‐45‐12. Handles 3” (76,2 mm) Diameter Spherical Solids.
Impeller Shaft: Stainless Steel 17‐4 PH.
Replaceable Wear Plate: Carbon Steel ASTM A36.
Removable Adjustable Cover Plate: Gray Iron 30; 50 lbs. (23 kg).
Flap Valve: Neoprene w/Steel Reinforcing.
Seal Plate: Gray Iron 30.
Shaft Sleeve: Alloy Steel 4130.
Seal: Cartridge Type, Mechanical, Oil‐Lubricated, Double Floating, Self‐Aligning. Silicon Carbide Rotating and Stationary Faces. Stainless Steel 316 Stationary Seat. Fluorocarbon Elastomers (DuPont Viton or Equivalent). Stainless Steel 18‐8 Cage and Spring. Maximum Temperature of Liquid Pumped 160F (71C).* Bearing Housing: Gray Iron 30.
Radial Bearing: Open Single Ball.
Thrust Bearing: Open Double Ball.
Bearing and Seal Cavity Lubrication: SAE 30 Non‐Detergent Oil.
Flanges: Gray Iron 30.
Gaskets: Buna‐N, Compressed Synthetic Fibers, PTFE, Vegetable Fiber, Cork, and Rubber.
O‐Rings: Buna‐N.
Hardware: Standard Plated Steel.
Brass Pressure Relief Valve.
Bearing and Seal Cavity Oil Level Sight Gauges.
*Consult Factory for Applications Exceeding Maximum Pressure and/or
Temperature Indicated.

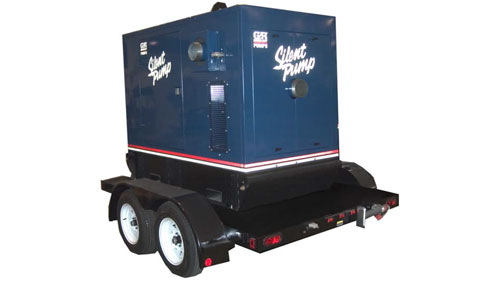

Standard Equipment: Soundproof (EPA Average 67 dBA at 23 feet [7 meters] Under Load). Lightweight Aluminum Enclosure ‐ Removable for Maintenance of Pump or Engine ‐ w/Padlockable Door Panels. Spill Containment Base w/Integral Drains and Fork Lift Pockets. Automatic Air Release Valve with Check Valve. 90 Discharge Elbow. Strainer. Single Level Actuated (Mircoswitch) Type Liquid Level Control System.**
Optional Equipment: Battery. Suction Vacuum and Discharge Pressure Gauge Kit. G‐R Hard Iron Impeller, Seal Plate and Wear Plate. Over‐the‐Road Trailer (Meets DOT Requirements) Available w/Either Electric or Hydraulic Surge Brakes, Running Lights, Jack Stands and Safety Cables. EPS w/Submersible Transducer Liquid Level Sensor (50 Ft. [15M] Cable Standard, Alternate Lengths Available).
**50 Ft. (15 m) Standard Length; Dual Switches and Alternate Cable Lengths Available From the Factory.

Specifications

Suction 6" (152 mm)
Discharge 6" (152 mm)
Solids Handling 3" (76 mm)
Solids Handling Cast Iron
Impeller Material Ductile Iron
Seal Material Silicon Carbide
Flange ASA
Drive Type Diesel Engine SP
