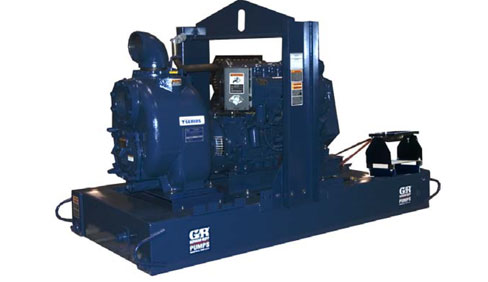

Gorman-Rupp T6A60S-F4L

Double tap to zoom



Features

Size: 6” x 6” (152 mm x 152 mm) NPT ‐ Female.
Casing: Gray Iron 30. Maximum Operating Pressure 99 psi (683 kPa).*
Semi‐Open Type, Two Vane Impeller: Ductile Iron 65‐45‐12. Handles 3” (76,2 mm) Diameter Spherical Solids.
Impeller Shaft: Stainless Steel 17‐4 PH.
Replaceable Wear Plate: Carbon Steel 1015.
Removable Adjustable Cover Plate: Gray Iron 30; 60.5 lbs. (27 kg).
Flap Valve: Neoprene w/Steel Reinforcement.
Drive Flange: Gray Iron 30.
Seal Plate: Gray Iron 30.
Shaft Sleeve: Alloy Steel 4130.
Seal: Cartridge Type, Mechanical, Oil‐Lubricated, Double Floating, Self‐Aligning. Silicon Carbide Rotating and Stationary Faces. Stainless Steel 316 Stationary Seat. Fluorocarbon Elastomers (DuPont Viton or Equivalent). Stainless Steel 18‐8 Cage and Spring. Maximum Temperature of Liquid Pumped 160F (71C).*
Bearing Housing: Gray Iron 30.
Radial Bearing: Open Single Row Ball.
Thrust Bearing: Open Double Row Ball.
Bearing and Seal Cavity Lubrication: SAE 30 Non‐Detergent Oil.
Flanges: Gray Iron 30.
Gaskets: Buna‐N, Compressed Synthetic Fibers, PTFE, Vegetable Fiber, Cork, and Rubber.
O‐Rings: Buna‐N.
Hardware: Standard Plated Steel.
Brass Pressure Relief Valve.
Bearing and Seal Cavity Oil Level Sight Gauges.
Standard Equipment: Hoisting Bail. 90 Discharge Elbow. Strainer.
Single Ball Type Float Switch.**
**50 Ft. (15 m) Standard Length; Dual Switches and Alternate Cable Lengths Available From the Factory.
Optional Equipment: Battery. G‐R Hard Iron Impeller and Seal Plate. Hardened Steel Wear Plate. High Speed (55 MPH/89 KM/H) Single Axle Pneumatic‐Tired Wheel Kit w/wo DOT‐Approved Lights and Electric Brakes. Tandem Axle Over‐the‐Road Trailer (Meets DOT Requirements) Available w/Either Electric or Hydraulic Surge Brakes, Running Lights, Jack Stands and Safety Cables/Chains. EPS w/Submersible Transducer Liquid Level Sensor (50 Ft.[15 M] Cable Standard, Alternate Lengths Available).
*Consult Factory for Applications Exceeding Maximum Pressure and/or Temperature Indicated.

Specifications

Suction 6" (152 mm)
Discharge 6" (152 mm)
Solids Handling 3" (76 mm)
Solids Handling Cast Iron
Impeller Material Ductile Iron
Seal Material Silicon Carbide
Flange ASA
Drive Type Diesel Engine
