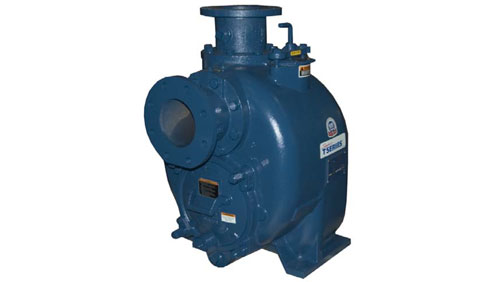

Size: 6” x 6” (152 mm x 152 mm) NPT ‐ Female.Casing: Gray Iron 30. Maximum Operating Pressure 79 psi (545 kPa).* Semi‐Open Type, Two Vane Impeller: Stainless Steel 316.Handles 3” (76,2 mm) Diameter Spherical Solids.Impeller Shaft: Stainless Steel 17‐4 PH.Replaceable Wear Plate: Stainless Steel 316.Removable Adjustable Cover Plate: Gray Iron 30; 64 lbs. (29 kg).Flap Valve: Neoprene w/Nylon and Steel Reinforcing.Seal Plate: Stainless Steel 316.Bearing Housing: Gray Iron 30.Radial Bearing: Open Single Row Ball.Thrust Bearing: Open Double Row Ball.Bearing and Seal Cavity Lubrication: SAE 30 Non‐Detergent Oil.Flanges: Gray Iron 30.Gaskets: Buna‐N, Compressed Synthetic Fibers, PTFE, Vegetable Fiber, Cork, and Rubber.O‐Rings: Buna‐N.Internal Wetted Hardware: Stainless Steel 316.External Hardware: Standard Plated Steel.Pressure Relief Valve: Stainless Steel 316.Bearing and Seal Cavity Oil Level Sight Gauges.Optional Equipment: Metal Bellows Seal. Automatic Air Release Valve. Stainless Steel CD4MCu Impeller, Seal Plate and Wear Plate. 120V/240V Casing Heater. High Pump Temperature Shutdown Kit. Self‐Cleaning Wear Plate.Gray Iron 30 Suction and Discharge Spool Flanges:6” ASA (Specify Model T6A61S‐B /F).150 mm DIN 2527 (PN16) (Specify Model T6A61S‐B /FM). *Consult Factory for Applications Exceeding Maximum Pressure and/or Temperature Indicated.
