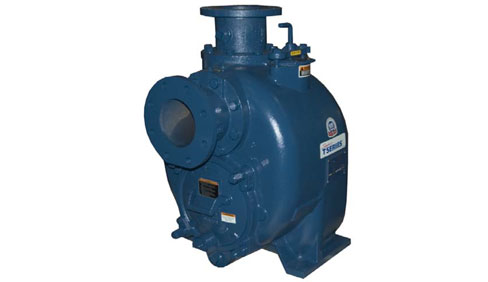

Gorman-Rupp T6A65S-B /F

Double tap to zoom



Features

Size: 6” x 6” (152 mm x 152 mm) NPT ‐ Female.
Casing: Stainless Steel CD4MCu. Maximum Operating Pressure 79 psi (545 kPa).*
Semi‐Open Type, Two Vane Impeller: Stainless Steel CD4MCu. Handles 3” (76,2 mm) Diameter Spherical Solids.
Impeller Shaft: Stainless Steel 17‐4 PH.
Replaceable Wear Plate: Stainless Steel CD4MCu.
Removable Adjustable Cover Plate: Stainless Steel CD4MCu; 64 lbs. (29 kg).
Seal Plate: Stainless Steel CD4MCu.
Flap Valve: Fluorocarbon (DuPont Viton or Equivalent) w/Stainless Steel Reinforcing.
Bearing Housing: Stainless Steel CD4MCu.
Radial Bearing: Open Single Row Ball.
Thrust Bearing: Open Double Row Ball.
Bearing and Seal Cavity Lubrication: SAE 30 Non‐Detergent Oil.
Suction Flange: Stainless Steel CD4MCu.
Discharge Flange: Stainless Steel 316.
Gaskets: Fluorocarbon (DuPont Viton or Equivalent), PTFE, Cork, and Rubber.
O‐Rings: Fluorocarbon (DuPont Viton or Equivalent).
Hardware: Stainless Steel 316.
Pressure Relief Valve: Stainless Steel 316.
Bearing and Seal Cavity Oil Level Sight Gauges.
Optional Equipment: Metal Bellows Seal. Automatic Air Release Valve. 120V/240V Casing Heater. High Pump Temperature Shutdown Kit. Self‐Cleaning Wear Plate.
Stainless Steel CD4MCu Suction and Discharge Spool Flanges:
6” ASA (Specify Model T6A65S‐B /F).
150 mm DIN 2527 (PN16) (Specify Model T6A65S‐B /FM).
*Consult Factory for Applications Exceeding Maximum Pressure and/or Temperature Indicated.

Specifications

Suction 6" (152 mm)
Discharge 6" (152 mm)
Solids Handling 3" (76 mm)
Solids Handling CD4MCu
Impeller Material CD4MCu
Seal Material Silicon Carbide
Flange ASA Spool
Drive Type Basic
