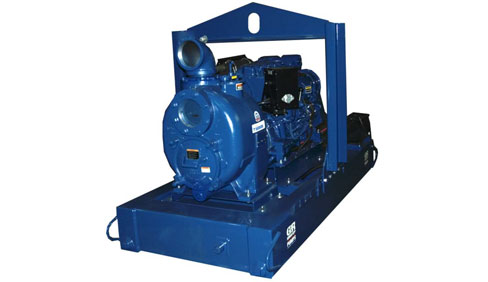

Gorman-Rupp T6A65S-F4L

Double tap to zoom



Features

Size: 6” x 6” (152 mm x 152 mm) NPT ‐ Female.
Casing: Stainless Steel CD4MCu. Maximum Operating Pressure 99 psi (683 kPa).*
Semi‐Open Type, Two Vane Impeller: Stainless Steel CD4MCu. Handles 3” (76,2 mm) Diameter Spherical Solids.
Impeller Shaft: Stainless Steel 17‐4 PH.
Replaceable Wear Plate: Stainless Steel CD4Mcu.
Removable Adjustable Cover Plate: Stainless Steel CD4Mcu; 64 lbs. (29 kg).
Flap Valve: Neoprene w/Steel Reinforcing.
Seal Plate: Stainless Steel CD4MCu.
Shaft Sleeve: Stainless Steel 17‐4 PH.
Seal: Cartridge Type, Mechanical, Oil‐Lubricated, Double Floating, Self‐Aligning. Silicon Carbide Rotating and Stationary Faces. Stainless Steel 316 Stationary Seat. Fluorocarbon Elastomers (DuPont Viton or Equivalent). Stainless Steel 316 Cage and Spring. Maximum Temperature of Liquid Pumped, 160F (71C).*
Bearing Housing: Stainless Steel CD4MCu.
Radial Bearing: Open Single Row Ball.
Thrust Bearing: Open Double Row Ball.
Bearing and Seal Cavity Lubrication: SAE 30 Non‐Detergent Oil.
Suction Flange: Stainless Steel CD4MCu.
Discharge Flange: Stainless Steel 316.
Gaskets: Fluorocarbon (DuPont Viton or Equivalent), PTFE,
Cork, and Rubber.
O‐Rings: Fluorocarbon (DuPont Viton or Equivalent).
Hardware: Stainless Steel 316.
Pressure Relief Valve: Stainless Steel 316.
Bearing and Seal Cavity Oil Level Sight Gauges.
Standard Equipment: Combination Skid Base w/Fuel Tank. Hoisting Bail. 90 Discharge Elbow. Strainer. Single Ball Type Float Switch.**
**50 Ft. (15 m) Standard Length; Dual Switches and Alternate Cable Lengths Available From the Factory.
Optional Equipment: Battery. High Speed (55 MPH/89 KM/H) Single Axle Pneumatic‐Tired Wheel Kit w/wo DOT‐Approved Lights and Electric Brakes. Tandem Axle Over‐the‐Road Trailer (Meets DOT Requirements) Available w/Either Electric or Hydraulic Surge Brakes, Running Lights, Jack Stands
and Safety Cables/Chains. EPS w/Submersible Transducer Liquid Level Sensor (50 Ft.[15 M] Cable Standard, Alternate Lengths Available).
*Consult Factory for Applications Exceeding Maximum Pressure and/or Temperature Indicated.

Specifications

Suction 6" (152 mm)
Discharge 6" (152 mm)
Solids Handling 3" (76 mm)
Solids Handling CD4MCu
Impeller Material CD4MCu
Seal Material Silicon Carbide
Flange ASA
Drive Type Diesel Engine
