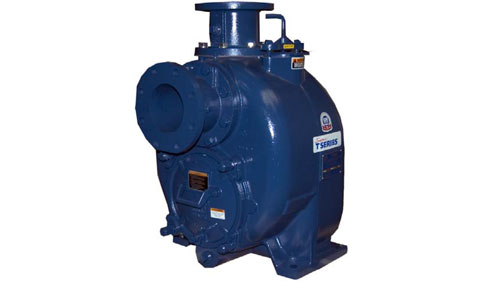

Gorman-Rupp T6B61S-B

Double tap to zoom



Features

Size: 6” x 6” (152 mm x 152 mm) NPT ‐ Female.
Casing: Gray Iron 30. Maximum Operating Pressure 81 psi (558 kPa).*
Semi‐Open Type, Six Vane Impeller: Stainless Steel CD4MCu. Handles 1 1/2” (38,1 mm) Diameter Spherical Solids.
Impeller Shaft: Stainless Steel 17‐4 PH.
Replaceable Wear Plate: Stainless Steel CD4MCu.
Removable Adjustable Cover Plate: Gray Iron 30; 62 lbs. (28 kg).
Seal Plate: Stainless Steel 316.
Flap Valve: Neoprene w/Nylon and Steel Reinforcing.
Bearing Housing: Gray Iron 30.
Radial Bearing: Open Single Row Ball.
Thrust Bearing: Open Double Row Ball.
Bearing and Seal Cavity Lubrication: SAE 30 Non‐Detergent Oil.
Flanges: Gray Iron 30.
Gaskets: Buna‐N, Compressed Synthetic Fibers, PTFE, Vegetable Fiber, Cork, and Rubber.
O‐Rings: Buna‐N.
Internal Wetted Hardware: Stainless Steel 316.
External Hardware: Standard Plated Steel.
Pressure Relief Valve: Stainless Steel 316.
Bearing and Seal Cavity Oil Level Sight Gauges.
Optional Equipment: Metal Bellows Seal. Automatic Air Release Valve. Stainless Steel CD4MCu Seal Plate. 120V/240V Casing Heater. High Pump Temperature Shutdown Kit.
Gray Iron 30 Suction and Discharge Spool Flanges:
6” ASA (Specify Model T6B61S‐B /F). 150 mm DIN 2527 (PN16) (Specify Model T6B61S‐B /FM).
*Consult Factory for Applications Exceeding Maximum Pressure and/or Temperature Indicated.

Specifications

Suction 6" (152 mm)
Discharge 6" (152 mm)
Solids Handling 1.5" (38 mm)
Solids Handling Cast Iron
Impeller Material CD4MCu
Seal Material Silicon Carbide
Flange ASA
Drive Type Basic
