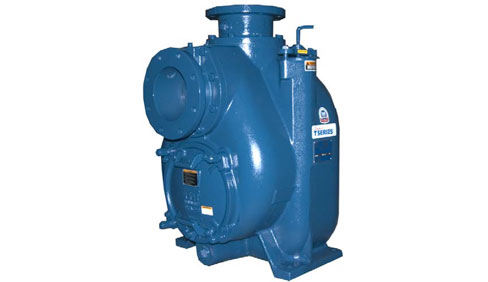

Gorman-Rupp T8A65S-B

Double tap to zoom



Features

Size: 8” (203 mm) ASA Flanged Suction x 8” (203 mm) NPT Female Discharge.
Casing: Stainless Steel CD4MCu. Maximum Operating Pressure 83 psi (572 kPa).*
Semi‐Open Type, Two Vane Impeller: Stainless Steel CD4MCu. Handles 3” (76,2 mm) Diameter Spherical Solids.
Impeller Shaft: Stainless Steel 17‐4 PH.
Replaceable Wear Plate: Stainless Steel CD4MCu.
Removable Adjustable Cover Plate: Stainless Steel CD4MCu; 97 lbs. (44 kg).
Seal Plate: Stainless Steel CD4MCu.
Flap Valve: Fluorocarbon (DuPont Viton or Equivalent) w/Stainless Steel Reinforcing.
Bearing Housing: Stainless Steel CD4MCu.
Radial and Thrust Bearings: Open Double Row Ball.
Bearing and Seal Cavity Lubrication: SAE 30 Non‐Detergent Oil.
Suction Flange: Stainless Steel CD4MCu.
Discharge Flange: Stainless Steel 316.
Gaskets: Fluorocarbon (DuPont Viton or Equivalent) and PTFE.
O-Rings: Fluorocarbon (DuPont Viton or Equivalent).
Hardware: Stainless Steel 316.
Pressure Relief Valve: Stainless Steel 316. Bearing and Seal Cavity Oil Level Sight Gauges.
Optional Equipment: Metal Bellows Seal. Automatic Air Release Valve. 120V/240V Casing Heater. High Pump Temperature Shutdown Kit. Self‐Cleaning Wear Plate.
Stainless Steel CD4MCu Spool Flanges:
8” ASA Discharge (Specify Model T8A65S‐B /F)
200 mm DIN 2527 (PN 16) Suction and Discharge (Specify Model T8A65S‐B /FM)
*Consult Factory for Applications Exceeding Maximum Pressure and/or Temperature Indicated.

Specifications

Suction 8" (203 mm)
Discharge 8" (203 mm)
Solids Handling 3" (76 mm)
Solids Handling CD4MCu
Impeller Material CD4MCu
Seal Material Silicon Carbide
Flange ASA
Drive Type Basic
