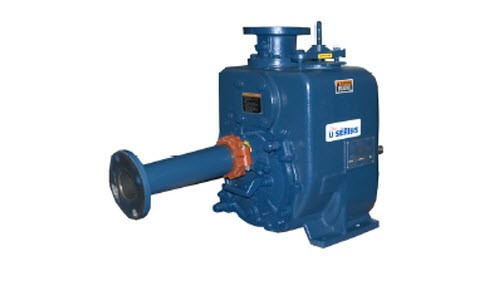

Size: 3” (76 mm) Flange Suction x 3” (76 mm) NPT Discharge.Casing: Gray Iron 30.Maximum Operating Pressure 139 psi (958 kPa).*Semi‐Open Type, Six Vane Impeller: Ductile Iron 60‐40‐18.Handles 13/16” (20,6 mm) Diameter Spherical Solids.Impeller Shaft: Alloy Steel 4150.Replaceable Wear Plate: Gray Iron 30.Removable Adjustable Cover Plate: Gray Iron 30; 60 lbs. (27 kg).Suction Extension Pipe: Schedule 40 Steel w/Gray Iron Flange.Bearing Housing: Gray Iron 30.Seal Plate: Gray Iron 30.Shaft Sleeve: Alloy Steel 4130.Radial Bearing: Open Single Row Ball.Thrust Bearing: Open Double Row Ball.Bearing and Seal Cavity Lubrication: SAE 30 Non‐Detergent Oil.Flanges: Gray Iron 30.Gaskets: Cork, Rubber, Vegetable Fiber and PTFE.O‐Rings: Buna‐N and Fluorocarbon (DuPont Viton or Equivalent).Hardware: Standard Plated Steel.Brass Pressure Relief Valve.Victaulic Suction Coupling.Bearing and Seal Cavity Oil Level Sight Gauges.Optional Equipment: Stainless Steel 316 Pressure Relief Valve. G‐RHard Iron and Stainless Steel Impeller, Seal Plate, and Wear Plate.Automatic Air Release Valve. 120V/240V Casing Heater. High PumpTemperature Shutdown Kit. Permalon, Kalrez or Fluorocarbon MetalBellows Seals. Stainless Steel Cartridge Seal.Discharge Spool Flange: Gray Iron 30.3” ASA (Specify Model U3A60S‐B /F).80 mm DIN 2527 (PN 16). Gray Iron 30 Suction and DischargeSpool Flanges.*Consult Factory for Applications Exceeding Maximum Pressureand/or Temperature Indicated.
