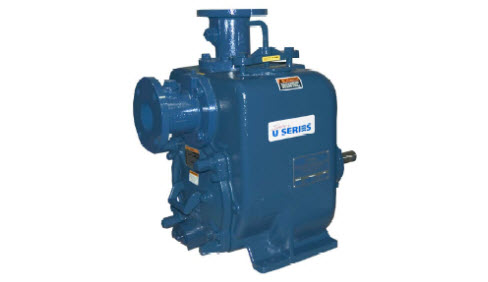

Size: 3" x 3" (76 mm x 76 mm) NPT - Female.Casing: Stainless Steel CD4MCu.Maximum Operating Pressure 137 psi (945 kPa).*Semi-Open Type, Six Vane Impeller: Stainless Steel CD4MCu.Handles 13/16" (20,6 mm) Diameter Spherical Solids.Impeller Shaft: Stainless Steel 17-4 PH.Replaceable Wear Plate: Stainless Steel CD4MCu.Removable Adjustable Cover Plate: Stainless Steel CD4MCu;56 lbs. (25 kg).Bearing Housing: Stainless Steel CD4MCu.Seal Plate: Stainless Steel CD4MCu.Flap Valve: Fluorocarbon Elastomers (DuPont Viton orEquivalent).Radial Bearing: Open Single Ball.Thrust Bearing: Open Double Ball.Bearing and Seal Cavity Lubrication: SAE 30 Non-Detergent Oil.Suction Flange: 125# Stainless Steel CD4MCu.Discharge Flange: 125# Stainless Steel 316.Gaskets: Fluorocarbon (DuPont Viton or Equivalent) and PTFE.O-Rings: Fluorocarbon (DuPont Viton or Equivalent).Hardware: Stainless Steel 316.Stainless Steel 316 Pressure Relief Valve.Bearing and Seal Cavity Oil Level Sight Gauges.Optional Equipment: Automatic Air Release Valve. Metal BellowsSeal. 120V/240V Casing Heater. High Pump TemperatureShutdown Kit. CD4MCu Stainless Steel Suction and DischargeSpool Flanges:3" ASA (Specify Model U3B65S-B /F).80 mm DIN 2527.SEAL DETAILMechanical, Oil-Lubricated, Double Floating,Self-Aligning. Silicon Carbide Rotating andStationary Faces. Stainless Steel 316 StationarySeat. Fluorocarbon Elastomers (DuPont Vitonor Equivalent). Stainless Steel 316 Cage andSpring. Maximum Temperature of LiquidPumped, 160F (71C).*Stainless Steel Basic Pump*Consult Factory for Applications ExceedingMaximum Pressure and/or Temperature Indicated
