Share This Product:

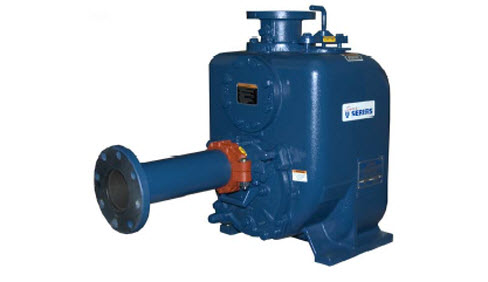

PUMP SPECIFICATIONSSize: 4” (102 mm) Flange Suction x 4” (102 mm) NPT Female Discharge.Casing: Gray Iron 30.Maximum Operating Pressure128 psi (883 kPa).*Semi‐Open Type, Six Vane Impeller: Ductile Iron 60‐40‐18.Handles 1 1/8” (28,6 mm) Diameter Spherical Solids.Impeller Shaft: Alloy Steel 4150.Replaceable Wear Plate: Gray Iron 30.Removable Adjustable Cover Plate: Gray Iron 30; 60 lbs. (27 kg).Suction Extension Pipe: Schedule 40 Steel w/Gray Iron Flange.Bearing Housing: Gray Iron 30.Seal Plate: Gray Iron 30.Shaft Sleeve: Alloy Steel 4130.Radial Bearing: Open Single Row Ball.Thrust Bearing: Open Double Row Ball.Bearing and Seal Cavity Lubrication: SAE 30 Non‐Detergent Oil.Flanges: Gray Iron 30.Gaskets: Cork, Rubber, Vegetable Fiber and PTFE.O‐Rings: Buna‐N.Hardware: Standard Plated Steel.Brass Pressure Relief Valve.Victaulic Suction Coupling.Bearing and Seal Cavity Oil Level Sight Gauges.Optional Equipment:Stainless Steel 316 Seal Plate, Wear Plate and Pressure Relief Valve. G‐RHard Iron Impeller, Seal Plate, and Wear Plate. Automatic Air ReleaseValve. 120V/240V Casing Heater. High Pump Temperature Shutdown Kit.Permalon, Kalrez or Fluorocarbon Metal Bellows Seals. Stainless SteelCartridge Seal.4” ASA Gray Iron 30 Discharge Spool Flange. (Specify ModelU4A60S‐B /F).100 mm DIN 2527 (PN 16) Gray Iron 30 Suction and Discharge SpoolFlanges.*Consult Factory for Applications Exceeding Maximum Pressureand/or Temperature Indicated.
Check out our financing special offering 0.99% for 48 months!
