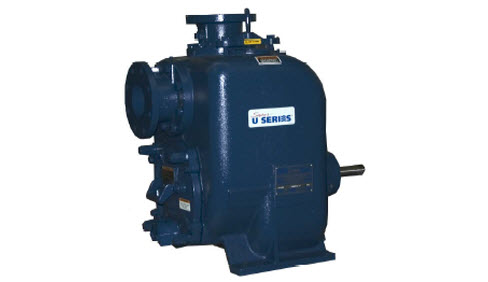

Gorman-Rupp U4B65S-B /F

Double tap to zoom



Features

Size: 4" x 4" (102 mm x 102 mm) NPT - Female.
Casing: Stainless Steel CD4MCu.
Maximum Operating Pressure 128 psi (883 kPa).*
Semi-Open Type, Six Vane Impeller: Stainless Steel CD4MCu.
Handles 1 1/8" (28,6 mm) Diameter Spherical Solids.
Impeller Shaft: Stainless Steel 17-4 PH.
Replaceable Wear Plate: Stainless Steel CD4MCu.
Removable Adjustable Cover Plate: Stainless Steel CD4MCu;
55 lbs. (25 kg).
Bearing Housing: Stainless Steel CD4MCu.
Seal Plate: Stainless Steel CD4MCu.
Flap Valve: Stainless Steel CD4MCu w/Fluorocarbon Elastomers
(DuPont Viton or Equivalent).
Radial Bearing: Open Single Ball.
Thrust Bearing: Open Double Ball.
Bearing and Seal Cavity Lubrication: SAE 30 Non-Detergent Oil.
Suction Flange: 125# Stainless Steel CD4MCu.
Discharge Flange: 125# Stainless Steel 316.
Gaskets: Fluorocarbon (DuPont Viton or Equivalent) and PTFE.
O-Rings: Fluorocarbon (DuPont Viton or Equivalent).
Hardware: Stainless Steel 316.
Stainless Steel 316 Pressure Relief Valve.
Bearing and Seal Cavity Oil Level Sight Gauges.
Optional Equipment: Automatic Air Release Valve. 120V/240V
Casing Heater. High Pump Temperature Shutdown Kit. Metal
Bellows Seal. Stainless Steel CD4MCu Suction and Discharge
Spool Flanges;
4" ASA (Specify Model U4B65S-B /F).
102 mm DIN 2527.
*Consult Factory for Applications Exceeding
Maximum Pressure and/or Temperature Indicated.

Specifications

Suction 4" (102 mm)
Discharge 4" (102 mm)
Solids Handling 1.13" (29 mm)
Material CD4MCu
Impeller Material CD4MCu
Seal Material Silicon Carbide
Flange ASA Spool
Drive Type Basic
