Share This Product:

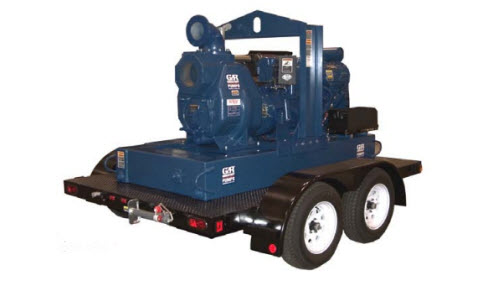

Size: 8” (203 mm) Suction x 6” (152 mm) Flanged Discharge.Casing: Gray Iron 30. Maximum Operating Pressure 129 psi (889 kPa).* Semi‐Open Type, Two Vane Impeller: Ductile Iron 65‐45‐12.Handles 3” (76,2 mm) Diameter Spherical Solids.Impeller Shaft: Stainless Steel 17‐4PH.Self‐Cleaning Replaceable Wear Plate: Carbon Steel ASTM A36.Shimless Adjustable Cover Plate: Gray Iron 30.Externally Removable Flap Valve: Neoprene w/Nylon and Steel Reinforcing.Suction Flange/Flap Valve Seat: Gray Iron 30.Bearing Housing: Gray Iron 30.Seal: Cartridge Type, Mechanical, Oil‐Lubricated, Double Floating,Self‐Aligning. Silicon Carbide Rotating and Stationary Faces. StainlessSteel 316 Stationary Seat. Fluorocarbon Elastomers (DuPont Vitonor Equivalent). Stainless Steel 18‐8 Cage and Spring. MaximumTemperature of Liquid Pumped, 160F (71C).* Seal Plate: Gray Iron 30.Shaft Sleeve: Stainless Steel 17‐4PH.Radial and Thrust Bearings: Open Double Row Ball.Bearing and Seal Cavity Lubrication: SAE 30 Non‐Detergent Oil.Gaskets: Buna‐N, Fluorocarbon (DuPont Viton or Equivalent), PTFE, Compressed Synthetic Fibers, Vegetable Fiber, Cork and Rubber.O‐Rings: Buna‐N.Hardware: Standard Plated Steel.Brass Pressure Relief Valve.Bearing and Seal Cavity Oil Level Sight Gauges.* Consult Factory for Applications Exceeding Maximum Pressure and/or Temperature Indicated.
Check out our financing special offering 0.99% for 48 months!
