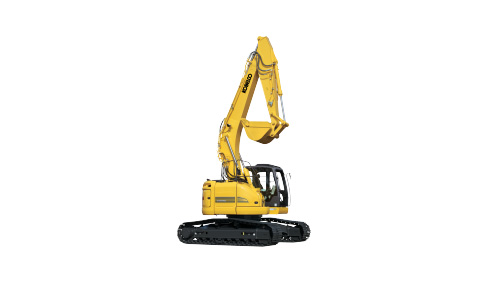

Kobelco SK230SRLC

Double tap to zoom



Features

  • Low Noise: iNDr - KOBELCO’s exclusive iNDr Cooling System delivers amazingly quiet operation
  • More Work with Less Fuel! - The new hydraulic system and an additional ECO-mode have cut fuel consumption by up to 21%.
  • Efficient Performance!
  • Fast, Accurate and Low-Cost Maintenance - comfortable "On the Ground" maintenance
  • A Working Environment that Helps Operator Concentrate on the Job - big cab, excellent visibility, wide-access cab aids smooth entry and exit,comfortable operating environment, ROPS cab,

Specifications

Model Name SK230SRLC
Machine Type SK230SRLC-3
Operating Weight lbs {kg} 55,100 {25,000}
Bucket Bucket capacity
SAE heaped cu.yd.{m3}
0.67 {0.51} 0.92 {0.70} 1.05 {0.80} 1.22 {0.93}
Bucket capacity
SAE Struck cu.yd.{m3}
0.51 {0.39} 0.68 {0.52} 0.77 {0.59} 0.88 {0.67}
Opening width
With side cutter inches {mm}
34 {870} 43 {1,080} 46 {1,160} 52 {1,330}
Opening width
Without side cutter inches {mm}
30 {770} 39 {980} 42 {1,060} 48 {1,230}
Bucket weight lb {kg} 1,140 {520} 1,390 {630} 1,460 {660} 1,570 {710}
Engine Model HINO J05E
Type Direct injection, water-cooled, 4-cycle diesel engine. With turbocharger, intercooler (Complies with EU (NRMM) Stage III B, US EPA Tier IV, and act on regulation, etc. of emission from non-road special motor vehicles (Japan))
Rated power output 166hp {124 kW}/2,000 rpm {-1} (ISO 14396)
157hp {117 kW} /2,000 rpm {-1} (ISO 9249)
Fuel tank 87.2 U.S.gal {330 L}
Swing System Swing Speed 13.3 rpm {min-1}
Travel System Travel motors 2 x axial-piston, two-step motors
Travel shoes 49 each side
Travel speed 3.7 / 2.2 mph {6.0 / 3.6 km/h}
Drawbar pulling force 51,000 lbs {226.9 kN} (SAE J 1309)
Gradeability 70% {35°}
Hydraulic System Pump Type Two variable displacement pumps
Max.discharge flow 2 x 58.1 U.S.gph {2 x 220L/min} ,
1 x 5.3 U.S.gph {1 x 20L/min}
Hydraulic oil tank 30.1 U.S.gal {114 L} tank oil level
60.8 U.S.gal {230 L} hydraulic system
