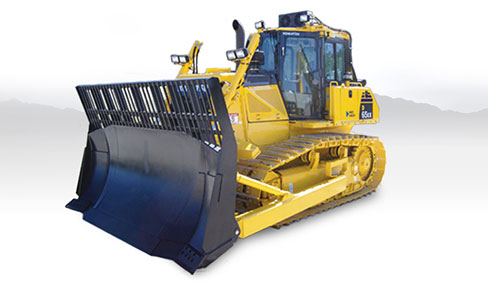

Komatsu D65WX-17WH

Double tap to zoom



Features

Roof Mounted AC Condenser

Moves condenser to a lower debris area for improved serviceability.

Belly Guard Seal Kit and Powered Engine Belly Pan Winch

Seal kit helps reduce debris from entering the engine compartment. Powered belly pan simplifies cleaning.

Quick Opening Two (2) Piece Radiator Guard Doors and Flexxaire Auto Reversing Fan

Doors allow easy access to the standard wide core radiator for cleanings. Computer controlled forward and reverse fan intervals allow the operator to concentrate on productivity while keeping the radiator and oil cooler clean.

Engine Exhaust Thermal Shield

Covers exhaust manifold, KDPF, and hot side of the turbo charger in order to reduce ignition temperature and thus reduce potential for fire.

Counterweight, HD w/ Rear Striker Bars and Hitch

Optimizes machine balance for landfill applications (1046 kg 2,306 lb)(Required unless winch or ripper is ordered).

Front Striker Bars, Frame Mounted (not available on PX or PAT blade) and Track Shoes with Holes

Striker bars help prevent debris from riding up on tracks and damaging chassis. Track shoe holes minimize packing and extend component life.

Automatic Transmission with Lockup Torque Converter

A significant reduction in fuel consumption and greater power train efficiency are achieved by the new automatic transmission and lockup torque converter. The automatic transmission selects the optimal gear range depending on the working conditions and load placed on the machine. This means the machine is always operating at maximum efficiency.

The lockup mechanism of the torque converter is automatically actuated to transfer engine power directly to the transmission in travelling and usual dozing speed ranges. Locking up the torque converter results in 10% improved drive train efficiency. Because the electronically controlled Tier 4 Interim engine is extremely efficient, an additional 5% decrease in fuel consumption is realized while also maintaining machine power.

Rear View Monitoring System

On the large LCD color monitor, the operator can view, through one camera, areas directly behind the machine. This camera can be synchronized with reverse operation.

Palm Command Control System (PCCS) Travel Joystick

Palm command travel joystick provides the operator with a relaxed posture and superb fine control. Transmission shifting is simplified with thumb push buttons.

Palm Command Proportional Pressure Control (PPC) Blade Control Joystick

Blade control joystick uses the PPC valve and joystick, similar to the travel control joystick. PPC control combined with the highly reliable Komatsu hydraulic system enables superb fine control. A switch is now used to angle the PAT blade.

Automatic shift mode

Select for all general dozing. When a load is applied, the transmission automatically shifts down, and when the load is off, it automatically shifts up to a set maximum gear speed. This mode economizes both fuel and production further when the torque converter lockup mechanism is actuated according to load, providing a one-to-one drive.

Manual shift mode

Select for dozing and ripping rough ground. When loaded, the transmission automatically shifts down, but does not shift up when the load is off.

Newly Integrated ROPS Cab

A newly designed cab; wider, deeper and taller, is integrated with the ROPS. High rigidity and superb sealing performance greatly reduce noise and vibration for the operator and minimize dust entering the cab. The standard air-ride seat positions the operator 3" higher and 4" closer to the blade. The taller and narrower battery box and tanks plus larger glass area also improve visibility of the blade, sides, and rear of the machine. Cab meets OSHA/MSHA ROPS and FOPS Level 2 standards.

Large Multi-Lingual LCD Color Monitor

A large user-friendly color monitor enables accurate and smooth work. Excellent screen visibility is achieved by the use of a TFT liquid crystal display that can easily be read at various angles and lighting conditions. Simple and easy to operate switches. Function keys facilitate multi-function operations. Data can be displayed in 25 languages for local customization.

Parallel Link Undercarriage System PLUS

Komatsu’s innovative Parallel Link Undercarriage System features a rotary bushing that demonstrates high durability in any working conditions. Allowing the bushing to rotate virtually eliminates bushing wear, resulting in doubled service life of the undercarriage when compared with the conventional undercarriage. In addition, wear limits of the link and carrier roller are increased to balance with the extended service life of the bushing.

Self-adjusting Idler Support

Self-adjusting idler support applies a constant spring force to the wear plate of the idler guide to eliminate the play of the idler. This results in reduced noise and vibration as well as extended service life of the wear plate.

Specifications

Engine

Model   Komatsu SAA6D114E-5*
Type   4-cycle, water-cooled, direct injection
Aspiration   Komatsu variable geometry turbocharged, air-to-air aftercooled
No. of cylinders   6
Bore x stroke 4.49" x 5.69" 114 mm x 144.5 mm
Piston displacement 540 in³ 8.85 ltr
Governor   All-speed and mid-range, electronic
Horsepower:
SAE J1995 - Gross 207 HP 155 kW
ISO 9249 / SAE J1349 - Net 205 HP 153 kW
Hydraulic fan at maximum speed 186 HP 139 kW
Rated rpm   1950 rpm
Fan drive type   Hydraulic
Lubrication system:
Method   Gear pump, force lubrication
Filter   Full-flow
TORQFLOW Transmission

Komatsu TORQFLOW transmission consists of a water-cooled, 3-element, 1-stage, 2-phase, torque converter with lockup clutch, and a planetary gear, multiple-disc clutch transmission which is electronically controlled, hydraulically actuated and force-lubricated for optimum heat dissipation. Shift lock lever and neutral safety switch.

Komatsu TORQFLOW transmission consists of a water-cooled, 3-element, 1-stage, 2-phase, torque converter with lockup clutch, and a planetary gear, multiple-disc clutch transmission which is electronically controlled, hydraulically actuated and force-lubricated for optimum heat dissipation. Shift lock lever and neutral safety switch.
Travel speed Forward Reverse
1st 2.2 mph
3.6 km/h 2.7 mph
4.4 km/h
2nd 3.4 mph
5.5 km/h 4.1 mph
6.6 km/h
3rdL 4.5 mph
7.2 km/h 5.3 mph
8.6 km/h
3rd 7.0 mph
11.2 km/h 8.3 mph
13.4 km/h
Steering System

Palm Command Control System (PCCS) lever controls for all directional movements. Pushing the PCCS lever forward results in forward machine travel, while pulling it rearward reverses the machine. Simply tilt the PCCS lever to left to make a left turn. Tilt it to the right for a right turn.
Hydrostatic Steering System (HSS) is powered by steering planetary units and a hydraulic pump and motor. Counter-rotation turns are also available. Wet, multiple-disc, pedal-controlled service brakes are spring-actuated and hydraulically released. Gear shift lock lever also applies parking brake.
Minimum turning radius:
D65EX-17 6'3" 1.9 m
D65EX-17 with PAT 6'7" 2.0 m
D65PX-17 7'3" 2.2 m
D65WX-17 6'11" 2.1 m
Undercarriage

Suspension   Oscillating equalizer bar and pivot shaft
Track roller frame   Monocoque, large section, durable construction
Rollers and idlers   Lubricated
Track shoes   Parallel Link Undercarriage System (PLUS) with lubricated rotating bushings for extended system wear life and lower maintenance costs. Track tension is easily adjusted with grease gun.
Final Drives

Double-reduction final drive of spur and planetary gear sets to increase tractive effort and reduce gear tooth stresses for long final drive life. Segmented sprocket teeth are bolt-on for easy replacement.

Hydraulic System

Closed-center load sensing system (CLSS) designed for precise and responsive control, and for efficient simultaneous operation.

Hydraulic control units:
All spool valves externally mounted beside the hydraulic tank. Piston type hydraulic pump with capacity (discharge flow) of 248 ltr/min / 65.5 U.S. gal/min at rated engine rpm.
Relief valve setting 4,050 psi 27.9 MPa / 285 kg/cm²
Control valves:
Spool control valves for SIGMADOZER or straight tilt dozer
Positions:
Blade lift   Raise, hold, lower, and float
Blade tilt   Right, hold, and left
Rear attachment   Raise, hold, and lower
Spool control valves for Power Angle Tilt dozer
Positions:
Blade lift   Raise, hold, lower, and float
Blade tilt   Right, hold, and left
Blade angle   Right, hold, and left
Rear attachment   Raise, hold, and lower
Hydraulic cylinders   Double-acting, piston
Number of cylinders - SIGMADOZER Straight Tilt Dozer: Bore:
Blade lift - 2 3.3" 85 mm
Blade tilt - 1 4.9" 125 mm
Blade angle - 2   N/A
Ripper lift - 1 4.9" 125 mm
Pitch angle - 1   39° - 53°
Number of cylinders - Power Tilt Dozer: Bore:
Blade lift - 2 3.5" 90 mm
Blade tilt - 1 5.1" 130 mm
Blade angle - 2 4.3" 110 mm
Ripper lift - 1 4.9" 125 mm
Pitch angle - 1   52° - 58°
Hydraulic oil capacity (refill): 14.5 U.S. gal 55 ltr
Ripper equipment (additional volume):
Multi-shank ripper 1.8 U.S. gal 7 ltr

Service Refill Capacities

Fuel tank 109.6 U.S. gal 415 ltr
Coolant 14.3 U.S. gal 54 ltr
Engine 6.6 U.S. gal 25 ltr
Torque converter, transmission, bevel gear, and steering system 12.7 U.S. gal 48 ltr
Final drive (each side):
D65EX-17 4.4 U.S. gal 16.5 ltr
D65EX-17 with PAT 4.4 U.S. gal 16.5 ltr
D65PX-17 5.8 U.S. gal 22 ltr
D65WX-17 5.8 U.S. gal 22 ltr
