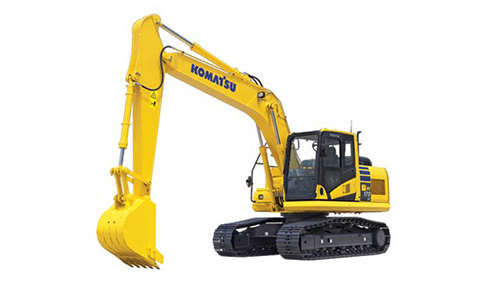

Komatsu PC170LC-10

Double tap to zoom



Features

Two counterweight options provide improved lifting performance as well as versatility to meet transportation requirements.

New engine and hydraulic pump control technology improves operational efficiency and lowers fuel consumption by up to 10%.

A powerful Komatsu SAA4D107E-2 engine provides a net output of 86 kW 115 HP. This engine is EPA Tier 4 Interim and EU stage 3B emissions certified.

Komatsu Diesel Oxidation Catalyst (KDOC) reduces particulate matter using 100% passive regeneration. No DPF is required.

Komatsu Variable Flow Turbocharger provides optimum air flow under all speed and load conditions.

Komatsu's Closed Center Load Sensing (CLSS) hydraulic system provides quick response and smooth operation to maximize productivity.

Enhanced working modes are designed to match engine speed, pump delivery, and system pressure to the application.

Large LCD color monitor panel:
■ 7" high resolution screen
■ Provides "Eco-Guidance" for fuel efficient operation
■ Enhanced attachment control
■ Aux jack and (2) 12V Outlets

Rearview monitoring system (standard)

Equipment Management Monitoring System (EMMS) continuously monitors machine operation and vital systems to identify machine issues and assist with troubleshooting.

Enhanced working environment
■ High back, heated, and airsuspension operator seat
■ Integrated ROPS cab design (ISO 12117-2)
■ Cab meets ISO Level 1 Operator Protective Guard (OPG) top guard (ISO 10262)

The standard counterweight increases lifting performance up to 5%, while an optional heavier counterweight provides up to 15% more lift capacity when compared to the previous series.

Wide access service doors provide easy access for ground level maintenance.

Guardrails (standard) provide convenient access to the upper structure.

Battery disconnect switch allows a technician to disconnect the power supply before servicing the machine.

Komatsu designed and manufactured components Swing out cooler design provides easy access to service and clean the cooler assembly.

Swing out cooler design provides easy access to service and clean the cooler assembly.

KOMTRAX equipped machines can send location, SMR and operation maps to a secure website utilizing wireless technology. Machines also relay error codes, cautions, maintenance items, fuel levels, and much more.

Specifications

Engine
Model   Komatsu SAA4D107E-2*
Type   Water cooled, 4-cycle, direct injection
Aspiration   Turbocharged, air-to-air aftercooled
Number of cylinders   4
Bore 4.21" 107 mm
Stroke 4.88" 124 mm
Piston displacement 272 in³ 4.46 ltr
Horsepower:
Gross (SAEJ1995) @ 2100 rpm 121 HP 90 kW
Net (ISO 9249/SAEJ1349) @ 2100 rpm 115 HP 86 kW
Governor   All speed control, electronic
Lubrication system :
Method   Gear pump, force-lubrication
Filter   Full-flow
Air cleaner   Air cleaner, double element and auto dust evacuator

Hydraulics
Type   HydrauMind (Hydraulic Mechanical Intelligence) system, closed-center system with load sensing valve and pressure compensated valve
Main pump:
Type   Variable capacity piston type
Pumps for   Boom, arm, bucket, swing, and travel circuits
Maximum flow 79 gal/min 298 ltr/min
Hydraulic motors:
Travel   2 x piston motor with parking brake
Swing   1 x axial piston motor with swing holding brake
Relief valve setting:
Implement circuits 5,450 psi 380 kgf/cm² / 37.3 MPa
Swing circuit 4,195 psi 295 kgf/cm² / 28.9 MPa
Pilot circuit 470 psi
33 kgf/cm² / 3.2 MPa
Hydraulic cylinders:
Number of cylinders bore x stroke x rod diameter bore x stroke x rod diameter
Boom / 2 4.3" x 46.3" x 3.0 110 mm x 1175 mm x 75 mm
Arm / 1 4.7" x 52.8" x 3.3" 120 mm x 1342 mm x 85 mm
Bucket / 1 4.1" x 40.4" x 2.8" 105 mm x 1027 mm x 70 mm

Drives and Brakes
Steering control   Two levers with pedals
Drive method   Fully hydrostatic
Maximum drawbar pull 35,164 lb 15950 kgf / 156 kN
Gradeability 35° 70%
Maximum travel speed:

High 3.4 mph 5.5 km/h
Low (Auto-Shift) 1.9 mph 3.0 km/h
Service brake   Hydraulic lock
Parking brake   Mechanical disc

Swing System
Drive method   Hydraulic motor
Swing reduction   Planetary gear
Swing circle lubrication   Grease-bathed
Swing lock   Mechanical disc brake
Swing speed   12.0 rpm
Swing torque 31,314 ft lbs 4331 kg•m

Undercarriage
Center frame X-frame leg
Track frame Box-section
Track type
Sealed
Track adjuster Hydraulic
Number of shoes (each side) 44
Number of carrier rollers (each side) 2
Number of track rollers (each side) 7

Coolant and Lubricant Capacity refilling
Fuel tank 79.25 U.S. gal 300 ltr
Coolant 4.9 U.S. gal 23.5 ltr
Engine 4.8 U.S. gal 18 ltr
Final drive, each side 1.43 U.S. gal 5.4 ltr
Swing drive 1.2 U.S. gal 4.5 ltr
Hydraulic tank 32.0 U.S. gal 121 ltr

Operating Weight
Operating weight including 5150 mm / 16'11" one-piece boom, 2610 mm / 8'7" arm, SAE heaped 0.65 m³ / 0.85 yd³ backhoe bucket, rated capacity of lubricants, coolant, full fuel tank, operator, and standard equipment.
Shoes: Operating Weight: Ground Pressure:
24" 38,600 lb 5.98 psi
600 mm 17500 kg 0.42 kgf/cm² / 41.2 kPa
28" 39,104 lb 5.06 psi
700 mm 17739 kg 0.37 kgf/cm² / 36.2 kPa
