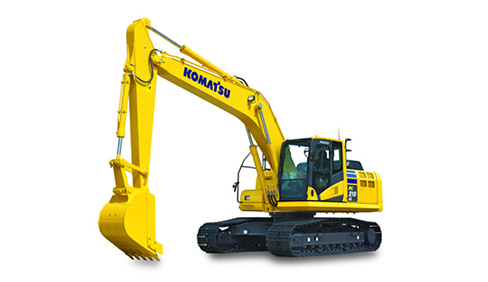

Komatsu PC210LC-10

Double tap to zoom



Features

Komatsu's Closed Center Load Sensing (CLSS) hydraulic system provides quick response and smooth operation to maximize productivity.

New engine and hydraulic pump control technology improves operational efficiency and lowers fuel consumption.

A powerful Komatsu SAA6D107E-2 engine provides a net output of 118 kW / 158 HP. This engine is EPA Tier 4 Interim and EU stage 3B emissions certified.

Komatsu Variable Geometry Turbocharger (KVGT) uses a hydraulic actuator to provide optimum air flow under all speed and load conditions.

Komatsu Diesel Particulate Filter (KDPF) captures 90% of particulate matter and provides automatic regeneration that does not interfere with daily operation.

Large displacement high efficiency pumps provide higher flow output and efficient operation.

Enhanced working modes are designed to match engine speed, pump delivery, and system pressure to the application.

Increased drawbar pull provides improved steering and maneuverability

Large LCD color monitor panel:
■ 7" high resolution screen
■ Provides "Eco-Guidance" for fuel efficient operation
■ Enhanced attachment control

Rearview monitoring system (standard)

Equipment Management Monitoring System (EMMS) continuously monitors machine operation and vital systems to identify machine issues and assist with troubleshooting.

Enhanced working environment
■ High back, heated, and air suspension operator seat
■ Integrated ROPS cab design (ISO 12117-2)
■ Cab meets ISO Level 1 Operator Protective Guard (OPG) top guard (ISO 10262)

Komatsu designed and manufactured components.

Guardrails (standard) located on the machine upper structure provide a convenient work area in front of the engine.

Swing out cooler design provides easy access to service and clean the cooler assembly.

Battery disconnect switch allows a technician to disconnect the power supply before servicing the machine.

Standard 10,406 lb (4720 kg) counterweight provides the same lifting performance as the PC200LC-8 (optional 7,937 lb / 3600 kg counterweight is available).

KOMTRAX equipped machines can send location, SMR and operation maps to a secure website utilizing wireless technology. Machines also relay error codes, cautions, maintenance items, fuel levels, and much more.

Specifications

Engine
Model   Komatsu SAA6D107E-2*
Type   Water-cooled, 4-cycle, direct injection
Aspiration   Turbocharged, aftercooled, cooled EGR
Number of cylinders   6
Bore 4.21'' 107 mm
Stroke 4.88'' 124 mm
Piston displacement 408 in³ 6.69 ltr
Horsepower
SAE J1995 - Gross 165 HP 123 kW
ISO 9249 / SAE J1349 - Net 158 HP 118 kW
Rated rpm   2000 rpm
Fan drive method for radiator cooling   Mechanical
Governor   All-speed control, electronic
*EPA Tier 4 Interim and EU stage 3B emissions certified

Hydraulics
Type - HydrauMind (Hydraulic Mechanical Intelligence New Design) system, closed-center system with load sensing valves and pressure compensated valves
Number of selectable working modes   6
Main pump:
Type   Variable displacement piston type
Pumps for   Boom, arm, bucket, swing, and travel circuits
Maximum flow 125.5 U.S. gal/min 475 ltr/min
Supply for control circuit   Self-reducing valve
Hydraulic motors:
Travel   2 x axial piston motors with parking brake
Swing   1 x axial piston motor with swing holding brake
Relief valve setting:
Implement circuits 5,400 psi 380 kgf/cm²/ 37.3 MPa
Travel circuit 5,400 psi 380 kgf/cm² / 37.3 MPa
Swing circuit 4,190 psi 295 kgf/cm²/ 28.9 MPa
Pilot circuit 470 psi 33 kgf/cm² / 3.2 MPa
Hydraulic cylinders:
Number of cylinders Bore x Stroke x Rod Diameter Bore x Stroke x Rod Diameter
Boom / 2 5.1" x 52.5" x 3.5" 130 mm x 1334 mm x 90 mm
Arm / 1 5.3" x 58.7" x 3.7" 135 mm x 1490 mm x 95 mm
Bucket / 1 4.5" x 44.1" x 3.2" 115 mm x 1120 mm x 80 mm

Drives & Brakes
Steering control   Two levers with pedals
Drive method   Hydrostatic
Maximum drawbar pull 45,349 lb 202 kN / 20570 kg
Gradeability 35° 70%
Maximum travel speed: (Auto-Shift)
High 3.4 mph 5.5 km/h
Mid 2.5 mph 4.1 km/h
Low 1.9 mph 3.0 km/h
Service brake   Hydraulic lock
Parking brake   Mechanical disc brake

Swing System
Drive method   Hydrostatic
Swing reduction   Planetary gear
Swing circle lubrication   Grease-bathed
Service brake   Hydraulic lock
Holding brake/Swing lock   Mechanical disc brake
Swing speed   12.4 rpm
Swing torque 49,907 ft lbs 6900 kg.m

Undercarriage
Center frame   X-frame
Track frame   Box-section
Seal of track   Sealed track
Track adjuster   Hydraulic
Number of shoes   49 each side
Number of carrier rollers   2 each side
Number of track rollers   9 each side

Coolant and Lubricant Capacity (refilling)
Fuel tank 105.7 U.S. gal 400 ltr
Coolant 8.1 U.S. gal 30.7 ltr
Engine 6.1 U.S. gal 23.1 ltr
Final drive, each side 1.3 U.S. gal 5.0 ltr
Swing drive 1.7 U.S. gal 6.6 ltr
Hydraulic tank 34.9 U.S. gal 132 ltr
Hydraulic system 61.8 U.S. gal 234 ltr

Operating Weight (approximate)
Operating weight, including 5700 mm / 18'8" one-piece boom, 2925 mm / 9'7" arm, SAE heaped 1.02 m³ / 1.34 yd³ bucket, rated capacity of lubricants, coolant, full fuel tank, operator, and standard equipment.
Triple-Grouser Shoes Operating Weight: Ground Pressure
28" / 700 mm 51,419 lb
23323 kg 6.2 psi
0.43 kg/cm²
31.5' / 800 mm 52,036 lb
23603 kg 5.5 psi
0.38 kg/cm²
