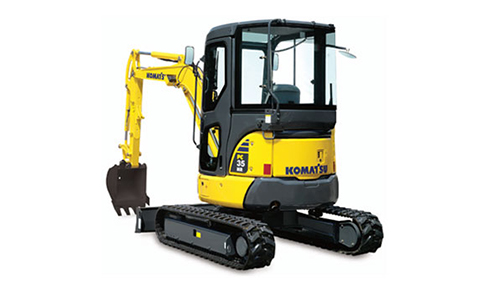

Komatsu PC35MR-3

Double tap to zoom



Features

Performance and Versatility
• Standard auxiliary hydraulics
• Standard thumb mounting bracket
• Three track options: rubber, steel, roadliner
• Automatic two-speed travel
• ISO/SAE pattern change valve
• Optional Power Angle blade

Operator Comfort
• Large operator platform
• Adjustable suspension seat with retractable seat belt
• Pilot proportional joystick controls
• Easy entry and egress
• Low noise

Service and Maintenance
• Wide opening engine hood and side covers
• Side-by-side radiator and oil cooler are easily inspected
• Grease points for work equipment are on the same side of the boom and arm
• Tilt-forward operator’s station provides full access to engine and hydraulic components
• Hydraulic hoses are alpha-numerically marked or color coded making them easy to identify

KOMTRAX® equipped machines can send location, SMR and operation maps to a secure website utilizing wireless technology.

Value, Durability, and Strength
• KOMTRAX® wireless equipment monitoring system
• High strength X-track frame
• Castings are used for boom foot, tip, and swing yoke
• Large diameter swing pin
• Reinforced arm
• O-ring face seal hydraulic fittings
• Moisture/dust resistant electrical connectors

Peace of Mind
• Two-post ROPS canopy or ROPS cab
• Neutral engine start system
• Excellent visibility enhances job site awareness
• Low emission Komatsu engine with dual element air cleaner
• One key operates the ignition and all machine locks

Specifications

Engine
Model   Komatsu 3D88E-6
Type   Direct injection
Piston displacement 100 in³ 1.64 ltr
Horsepower @ 2400 rpm:
Net (ISO 9249/SAE J1349) 29 HP 21.4 kW

Electric System
Operation voltage 12 V
Battery 58 Ah
Alternator 40 A
Starter 2.3 kW

Hydraulic System
Type   HydrauMind
Main pump:
Type   Variable displacement x 2
Gear x 1
Maximum flow 9.5 x 2 + 5.2 gal/min 36.1 x 2 + 19.8 ltr/min
Hydraulic motors:
Travel   Variable displacement x 2
Swing   Fixed displacement x 1
Maximum pressure setting 3,770 psi 265 kg/cm²
Auxiliary flow 18.5 gal/min 70 ltr/min

Performance
Travel speed:
High 3.0 mph 4.8 km/hr
Low 1.7 mph 2.8 km/hr
Swing speed   9.0 rpm
Ground pressure 5.1 psi 0.36 kg/cm²
Max. drawbar pull 7,500 lb 3400 kg
Gradeability   30°
Bucket digging force (ISO) 6,725 lb 3050 kg
Arm crowd force (ISO) 3,682 lb 1670 kg

Drives and Brakes
Drive method Hydrostatic
Type of travel brake Hydraulic lock
Type of travel shoe Rubber

Undercarriage
Adjustment of the track tension Grease gun
Number of carrier rollers (each side) 1
Number of track rollers (each side) 4

Refill Capacities
Fuel tank 11.6 U.S. gal 44 ltr
Hydraulic tank 3.7 U.S. gal 14 ltr
Engine 1.8 U.S. gal 6.7 ltr
Coolant 0.9 U.S. gal 3.3 ltr

Operating Weight (approximate)
Operating weight
(with ROPS canopy and rubber shoe) 7,909 lb 3595 kg

Blade
Width x height 5'9" x 1'2" 1740 x 355 mm
