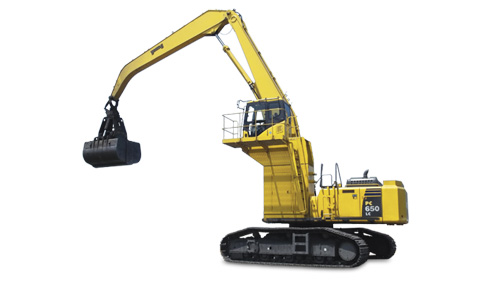

Komatsu PC650LC-8 MH

Double tap to zoom



Features

Lower and Economical Fuel Consumption Using Economy Mode

Enables the operator to set the Economy mode to one of four levels according to the working conditions so that the production requirement is achieved at the lowest fuel consumption.

Lift Mode

Gives 17% more lifting force when needed for heavy lifting applications.

Working Modes Selectable

Power and Economy modes have been improved.
P mode – Power or work priority mode has low fuel consumption, but fast equipment speed and maximum power.
E mode – Economy or fuel saving mode further reduces fuel consumption, but maintains the P-modelike work equipment speed for light-duty work.
You can easily select Power or Economy modes using the monitor panel to match performance to the application at hand.

Large Digging Force

With the addition of the one-touch Power Max. function, digging force has been increased. (8 seconds of operation)

Maximum arm crowd force (ISO):

222 kN (24.9 t) → 238 kN (26.8 t) 8 % UP (with Power Max.)

Maximum bucket digging force (ISO):

264 kN (29.7 t) → 285 kN (32.1.0 t) 8 % UP (with Power Max.)

Work Equipment Speed Increased

Work equipment speed and compound operation speed become faster with the arm quick return circuit and the arm regeneration circuit, increasing productivity and reducing hydraulic loss.

Two-mode Setting for Boom

Smooth mode provides easy operation for gathering blasted rock and scraping operations. When maximum digging force is needed, switch to Power mode for more effective excavating.

Strengthened Boom and Arm

Thanks to large cross-sectional structures, thick high tensile strength steel plates, and partition walls, the boom and arm exhibit excellent durability and are highly resistant to bending and torsional stress.

High-Pressure In-line Filtration

An in-line filter in the outlet port of each main hydraulic pump provides an extra level of hydraulic system protection, reducing failures caused by contamination.

Wide Newly-designed Cab

Newly-designed wide spacious cab includes a high-back, heated seat with a reclining backrest. The seat height and longitudinal inclination are easily adjusted using a pull-up lever. You can set the appropriate operational position of the armrest together with the console. Reclining the seat enables you to place it into a fully flat position with the headrest attached.

Large Multi-Lingual LCD Monitor

A large user-friendly color monitor enables accurate and smooth work. Improved screen visibility is achieved by using a TFT liquid crystal display that can be easily read at various angles and lighting conditions. All switches are simple and easy to operate. Industry-first function keys facilitate multi-function operations. The monitor displays data in 12 languages to globally support operators around the world.

Rear-view Monitoring System standard

On the large LCD color monitor, the operator can access and view one standard camera that will display areas directly behind the machine. An optional 2-camera system is available.

Specifications

Engine
Model   Komatsu SAA6D140E-5*
Type   Water-cooled, 4-cycle, direct injection
Aspiration   Turbocharged, aftercooled, cooled EGR
Number of cylinders   6
Bore 5.51" 140 mm
Stroke 6.50" 165 mm
Piston displacement 930 in³ 15.24 ltr
Governor   All-speed control, electronic
Horsepower:
SAE J1995 (Gross) 433 HP 323 kW
ISO9249 / SAE J1349 (Net) 429 HP 320 kW
Hydraulic fan at maximum speed (Net) 386 HP 288 kW
Rated rpm   1800 rpm
Fan drive method for radiator cooling   Hydraulic
*EPA Tier 3 and EU stage 3A emissions certified

Hydraulics
Type   Open-center load-sensing system
Number of selectable working modes   3
Main pump:
Type   Variable-capacity piston pumps
Pumps for   Boom, arm, bucket, swing, and travel circuits
Maximum flow 2 x 108 U.S. gpm 2 x 410 ltr/min
Sub-pump for control circuit   Gear pump
Hydraulic motors:
Travel   2 x axial piston motor with parking brake
Swing   2 x axial piston motor with swing holding brake
Fan drive pump   Variable capacity
Relief valve setting:
Implement circuits 4,620 psi 31.9 MPa
325 kg/cm²
Travel circuit 4,980 psi 34.3 MPa
350 kg/cm²
Swing circuit 3,700 psi 25.5 MPa
260 kg/cm²
Pilot circuit 430 psi 2.9 MPa
30 kg/cm²
Hydraulic cylinders / Number of cylinders: Bore x Stroke: Bore x Stroke:
Boom / 2 7.5" x 61.5" x 5.0" 190 mm x 1562 mm x 127 mm
Arm / 1 7.5" x 78.0" x 5.0" 190 mm x 1981 mm x 127 mm

Drives & Brakes
Steering control   Two levers with pedals
Drive method   Fully hydrostatic
Travel motor   Axial piston motor, in-shoe design
Reduction system   Planetary triple reduction
Maximum drawbar pull 93,250 lb 415 kN / 42300 kg
Gradeability   70%
Maximum travel speed:
Low 1.9 mph 3.0 km/h
High 3.0 mph 4.9 km/h
Service brake   Hydraulic lock
Parking brake   Oil disc brake

Swing System
Driven method   Hydraulic motors (2)
Swing reduction   Planetary gear
Swing circle lubrication   Grease-bathed
Swing lock   Oil disc brake
Swing speed   8.3 rpm
Swing torque 154,481 ft. lbs. 21365 kg•m

Undercarriage
Center frame   H-leg frame
Track frame   Box-section
Track type   Sealed
Track adjuster   Hydraulic
Number of shoes (each side)   52
Number of carrier rollers (each side)   3
Number of track rollers (each side)   9

Coolant and Lubricant Capacity (refilling)
Fuel tank 232.5 U.S. gal 880 ltr
Radiator 15.3 U.S. gal 58 ltr
Engine 10.6 U.S. gal 40 ltr
Final drive, each side 2.6 U.S. gal 10 ltr
Swing drive 2 x 3.4 U.S. gal 2 x 13 ltr
Hydraulic tank 95.0 U.S. gal 360 ltr

Operating Weight (approximate)
Operating weight without grapple

16.8 m / 55'
3302 mm / 130" gauge 139,424 lb 63242 kg
4064 mm / 160" gauge 149,224 lb 67687 kg
18.3 m 60'
3302 mm / 130" gauge 140,838 lb 63883 kg
4064 mm / 160" gauge 150,638 lb 68329 kg
