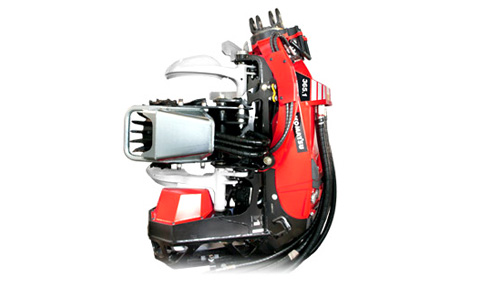

Komatsu 365.1

Double tap to zoom



Features

Excellent long reach performance
With the high net lifting power, this head performs astoundingly at long reaches.

Unique measurement precision
Newly developed length measurement unit with sturdy bearings, a remote sensor, and a system (patent pending) to ensure the trunk is followed closely and accurately.

High net traction
The three feed wheels provide high net traction.

Unbeatable control
The optimized frame design provides high net lifting power for the prime mover, ensuring superb control.

New feed rollers
Improved stem gripping and centring, providing more efficient feed and subsequently higher productivity. Also maintains lower clamping pressure which saves fuel.

New cast delimbing knives
Increased durability and improved stem gripping

New body roller
As an option you can choose the new body roller that together with the new feed rollers also improves feed.

Specifications

Bar 75 cm (29.5”) or 82.5 cm (32.5”)
Delimbing knives, number 5
Feed speed 0-5 m/s (0-16.4 ft/s)
Feed wheel type Steel rollers
Fell/cut diam. theor. max 650 mm (25.6”)
Requisite max. hydraulic pressure 28 MPa (4,061 psi)
Saw motor 19 cm3/rev (1.16 cu in/rev)
Delimbing knives, opening, tip-to-tip 460 mm (18.1”)
Feed force, gross Roller motor dependent. 625cc: 23.7 kN (5,328 lbf), 750cc: 28.3 kN (6,362 lbf)
Requisite max. hydraulic flow Roller motor dependent, 625cc: 255 l/min (67 gal/min), 750cc: 300 l/min (79 gal/min)
Weight from 1,235 kg (2,723 lb)
