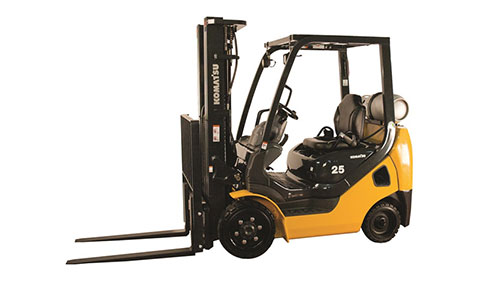

Komatsu BX50 Series IC Cushion

Double tap to zoom



Features

Komatsu’s heart-of-the-line BX50 series redefines the forklift once again. Whether your application calls for an agile and maneuverable cushion tire model for indoors, or the flexibility and power of a pneumatic model for outdoors, the BX50 series is sure to meet your needs. The BX50’s superior performance can increase productivity, minimize operator fatigue, reduce operating costs and improve the working environment. Boost your bottom line now—put a BX50 to work in your application today.

Specifications

General

GENERAL FG20ST-16 FG25ST-16 FG25SHT-16 FG30SHT-16 FG32SHT-16
Power Type LPG LPG LPG LPG LPG
Operation Type Sit-Down Sit-Down Sit-Down Sit-Down Sit-Down
Capacity @ 24 in. (600mm) Load Center 4,000 lbs 5,000 lbs 5,000 lbs 6,000 lbs 6,500 lbs
Load Distance  From Center Axle (2 Stage) 16.9 in 16.9 in 16.9 in 17.3 in 17.3 in
Wheelbase 55.1 in 55.1 in 55.1 in 57.1 in 57.1 in

Weight

WEIGHT FG20ST-16 FG25ST-16 FG25SHT-16 FG30SHT-16 FG32SHT-16
Service Weight 7,300 lbs 8,180 lbs 8,180 lbs 9,440 lbs 9,920 lbs
Loaded Front 9,820 lbs 11,330 lbs 11,330 lbs 13,260 lbs 14,000 lbs
Loaded Rear 1,480 lbs 1,850 lbs 1,850 lbs 2,180 lbs 2,430 lbs
Unloaded Front 2,820 lbs 2,600 lbs 2,600 lbs 2,870 lbs 2,740 lbs
Unloaded Rear 4,480 lbs 5,580 lbs 5,580 lbs 6,570 lbs 7,180 lbs

Tires

TIRES FG20ST-16 FG25ST-16 FG25SHT-16 FG30SHT-16 FG32SHT-16
Tire Type Cushion Cushion Cushion Cushion Cushion
Front 21 x 7 x 15 in 21 x 7 x 15 in 21 x 7 x 15 in 21 x 8 x 15 in 21 x 8 x 15 in
Rear 16 .25 x 5 x 11.25 in 16 .25 x 5 x 11.25 in 16 .25 x 5 x 11.25 in 16.25 x 6 x 11.25 in 16.25 x 6 x 11.25 in
Number of Wheels, Front/Rear 2x / 2 2x / 2 2x / 2 2x / 2 2x / 2
Front 34.6 in 34.6 in 34.6 in 35.2 in 35.2 in
Rear 35.4 in 35.4 in 35.4 in 34.7 in 34.8 in

Dimensions

DIMENSIONS FG20ST-16 FG25ST-16 FG25SHT-16 FG30SHT-16 FG32SHT-16
Tilting Angle, Forward/Backward 6 / 8 deg 6 / 8 deg 6 / 8 deg 6 / 8 deg 6 / 8 deg
Mast Height 85.5 in 85.5 in 85.5 in 86.5 in 88.6 in
Extended 176 in 176 in 176 in 176 in 176 in
Free Lift Height 5.5 in 5.5 in 5.5 in 5.5 in 5.5 in
Maximum Fork Height 128 in 128 in 128 in 128 in 128 in
Height Overhead Guard 80.9 in 80.9 in 80.9 in 80.9 in 80.9 in
Length, with Standard Forks 132.9 in 135.4 in 135.4 in 137.8 in 139.2 in
Length to Fork Face 90.8 in 93.3 in 93.3 in 95.7 in 97.1 in
Overall Width at Drive Tires 42.1 in 42.1 in 42.1 in 43.3 in 43.3 in
Forks, Thickness x Width x Length 1.6 x 3.9 x 42 in 1.6 x 3.9 x 42 in 1.6 x 4 x 42 in 2 x 4 x 42 in 2 x 4 x 42 in
Carriage Width/ITA Class 37 in / II 37 in / II 37 in / II 37 in / III 37 in / III
Ground Clearance, Under Mast 5.5 in 5.5 in 5.5 in 5.5 in 5.5 in
Ground Clearance, Center of Wheelbase 3.9 n 3.9 n 3.9 n 3.9 in 3.9 in
Right Angle Stacking Aisle 92.5 in 94.5 in 94.5 in 98.8 in 100 in
Turning Radius, Outside 75.6 in 77.6 in 77.6 in 81.5 in 82.7 in

Performance

PERFORMANCE FG20ST-16 FG25ST-16 FG25SHT-16 FG30SHT-16 FG32SHT-16
Travel Speed, Loaded/Unloaded 10.6 / 10.6 mph 10.6 / 10.6 mph 10.6 / 10.6 mph 10.6 / 10.6 mph 10.6 / 10.6 mph
Lifting Speed, Loaded/Unloaded 120 / 124 fpm 120 / 124 fpm 120 / 124 fpm 104 / 124 fpm 104 / 108 in
Lowering Speed, Loaded/Unloaded 98 / 98 fpm 98 / 98 fpm 98 / 98 fpm 98 / 98 fpm 98 / 98 fpm
Maximum Drawbar Pull, Loaded 4,343 lbs 4,343 lbs 5,513 lbs 5,513 lbs 5,175 in
Maximum Gradeability 36% 30% 39% 31% 28.50%
Service Brake, Operation/Control Foot / Hydraulic Foot / Hydraulic Foot / Hydraulic Foot / Hydraulic Foot / Hydraulic
Parking Brake, Operation/Control Hand / Mechanic Hand / Mechanic Hand / Mechanic Hand / Mechanic Hand / Mechanic
Steering Type FHPS FHPS FHPS FHPS FHPS

Drive

DRIVE FG20ST-16 FG25ST-16 FG25SHT-16 FG30SHT-16 FG32SHT-16
Engine Manufacturer / Engine Model GCT / K21 GCT / K21 GCT / K25 GCT / K25 GCT / K25
Rated Output (SAE Net) 56 HP @ 2,700 rpm 56 HP @ 2,700 rpm 60 HP @ 2,700 rpm 60 HP @ 2,700 rpm 60 HP @ 2,700 rpm
Maximum Torque (SAE Net) 119 lb-ft @ 1,600 rpm 119 lb-ft @ 1,600 rpm 142 lb-ft @ 1,600 rpm 142 lb-ft @ 1,600 rpm 142 lb-ft @ 1,600 rpm
# of Cylinders / Displacement 4 / 126 cu in 4 / 126 cu in 4 / 152 cu in 4 / 152 cu in 4 / 152 cu in

Other

OTHER FG20ST-16 FG25ST-16 FG25SHT-16 FG30SHT-16 FG32SHT-16
Relief Pressure, Maximum 2,650 psi 2,650 psi 2,650 psi 2,650 psi 2,650 psi
Transmission Powershift Powershift Powershift Powershift Powershift
Sound Level 82 dB 83 dB 83 dB 83 dB 83 dB
