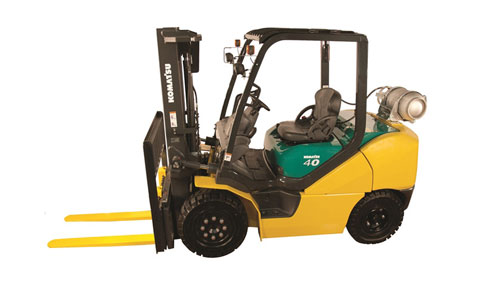

Komatsu CX50 Series IC Pneumatic

Double tap to zoom



Features

The fusion of advanced engine technologies and Komatsu’s unique hydraulic system enables the CX50 Series to achieve significant reduction in total operation costs and facilitates superior working performance. A fully electronically controlled engine with a 3-way catalytic system conforms to the latest emission regulations for a cleaner work environment. The CX50 challenges the conventional concept of the forklift.

Specifications

GENERAL FG40ZTU-10 FG40TU-10 FG45TU-10 FG50ATU-10
Power Type LPG LPG LPG LPG
Operation Type Sit-Down Sit-Down Sit-Down Sit-Down
Capacity @ 24 in. (600mm) Load Center 8,000 lbs 9,000 lbs 10,000 lbs 11,000 lbs
Load Distance  From Center Axle (2 Stage) 21.3 in 22.8 in 23.2 in 22.6 in
Wheelbase 70.9 in 78.7 in 78.7 in 78.7 in

Weight

WEIGHT FG40ZTU-10 FG40TU-10 FG45TU-10 FG50ATU-10
Service Weight 12,507 lbs 13,673 lbs 14,960 lbs 15,928 lbs
Loaded Front 18,766 lbs 19,547 lbs 21,813 lbs 23,727 lbs
Loaded Rear 2,541 lbs 2,926 lbs 3,047 lbs 3,201 lbs
Unloaded Front 4,873 lbs 5,555 lbs 6,017 lbs 6,270 lbs
Unloaded Rear 7,634 lbs 8,118 lbs 8,943 lbs 9,658 lbs

Tires

TIRES FG40ZTU-10 FG40TU-10 FG45TU-10 FG50ATU-10
Tire Type Pneumatic Pneumatic Pneumatic Pneumatic
Front 250 - 15 - 16PR (I) 300 - 15 - 18PR (I) 300 - 15 - 18PR (I) 300 - 15 - 18PR (I)
Rear 7 - 12 - 12PR (I) 7 - 12 - 12PR (I) 7 - 12 - 12PR (I) 7 - 12 - 14PR (I)
Number of Wheels, Front/Rear 2x / 2  2X / 2 2X / 2 2X / 2
Front 43.9 in 45.3 in 45.3 in 45.3 in
Rear 44.1 in 44.1 in 44.1 in 44.1 in

Dimensions

DIMENSIONS FG40ZTU-10 FG40TU-10 FG45TU-10 FG50ATU-10
Tilting Angle, Forward/Backward 6 / 12 deg 6 / 12 deg 6 / 12 deg 6 / 12 deg
Lowered 82.7 in 106.7 in 98.4 in 101.8 in
Extended 162.6 in 162.6 in 162.6 in 171.1 in
Free Lift Height 6.1 in 6.3 in 5.7 in 5.7 in
Maximum Fork Height 118.1 in 118.1 in 118.1 in 118.1 in
Height Overhead Guard 87 in 88.6 in 88.6 in 88.6 in
Length, with Standard Forks 158.5 in 166.1 in 168.1 in 173.4 in
Length to Fork Face 116.3 in 124 in 126 in 125.4 in
Overall Width at Drive Tires 53.1 in 57.1 in 57.1 in 57.1 in
Forks, Thickness x Width x Length 2 x 5.9 x 42.1 in 2.2 x 5.9 x 42.1 in 2.2 x 5.9 x 42.1 in 2.2 x 5.9 x 48 in
Carriage Width/ITA Class 46.9 in / III 46.9 in / III 46.9 in / III 50 in / IV
Ground Clearance, Under Mast 5.5 in 5.7 in 5.7 in 5.7 in
Ground Clearance, Center of Wheelbase 6.9 in 8.7 in 8.7 in 8.7 in
Right Angle Stacking Aisle 122.9 in 131.9 in 134.2 in 134.8 in
Turning Radius, Outside 101.6 in 109.1 in 111 in 112.2 in

Performance

PERFORMANCE FG40ZTU-10 FG40TU-10 FG45TU-10 FG50ATU-10
Travel Speed, Loaded - 1st/ 2nd 11.2 / NA mph 11.2 / NA mph 9.6 / 14.3 mph 9.0 / 14.6 mph
Travel Speed, Unloaded - 1st/ 2nd 11.8 / NA mph 11.8 / NA mph 10.3 / 14.9 mph 9.6 / 15.2 mph
Lifting Speed, Loaded/Unloaded 100.4 / 100.4 fpm 100.4 / 100.4 fpm 86.6 / 86.6 fpm 86.6 / 86.6 fpm
Lowering Speed, Loaded/Unloaded 98.4 / 98.4 fpm 98.4 / 98.4 fpm 98.4 / 98.4 fpm 98.4 / 98.4 fpm
Maximum Drawbar Pull, Loaded 5,395 lbs 5,395 lbs 6,295 lbs 6,295 lbs
Maximum Gradeability 28% 25% 26% 25%
Service Brake, Operation/Control Foot / Hydraulic Foot / Hydraulic Foot / Hydraulic Foot / Hydraulic
Parking Brake, Operation/Control Hand / Mechanical Hand / Mechanical Hand / Mechanical Hand / Mechanical
Steering Type FHPS FHPS FHPS FHPS

Drive

DRIVE FG40ZTU-10 FG40TU-10 FG45TU-10 FG50ATU-10
Engine Manufacturer / Engine Model GCT EBT-TB45-1A GCT EBT-TB45-1A GCT EBT-TB45-1A GCT EBT-TB45-1A
Rated Output (SAE Net) 83.8 HP @ 2,400 rpm 92.5 HP @ 2,250 rpm 92.5 HP @ 2,250 rpm 92.5 HP @ 2,250 rpm
Maximum Torque (SAE Net) 201 lb-ft @ 1,600 rpm 201 lb-ft @ 1,600 rpm 201 lb-ft @ 1,600 rpm 201 lb-ft @ 1,600 rpm
# of Cylinders / Displacement 6 / 273 cu in 6 / 273 cu in 6 / 273 cu in 6 / 273 cu in
Fuel Tank Capacity 20.1 US Gallons 25.9 US Gallons 25.9 US Gallons 25.9 US Gallons

Other

OTHER FG40ZTU-10 FG40TU-10 FG45TU-10 FG50ATU-10
Relief Pressure, Maximum 2,988 psi 2,988 psi 2,988 psi 2,988 psi
Transmission TORQFLOW TORQFLOW TORQFLOW TORQFLOW
