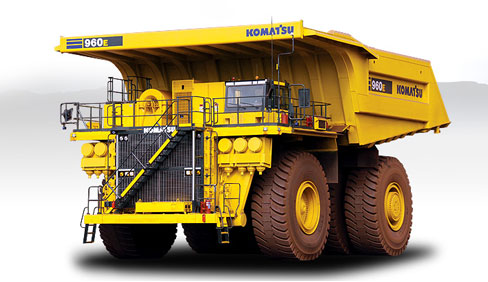

Komatsu 960E-2K

Double tap to zoom



Features

The 960E-2K provides the same features as the 960E-2 but uses Komatsu Drive with Siemens liquid cooled insulated Gate Bipolar Transistor (IGBT). In addition, Komatsu Drive provides improve torque capacity, a top speed of 40 mph and Hill Start logic which helps reduce rollback in case the truck has to stop while travelling uphill.

Specifications

Engine

Make and model*   Komatsu SSDA18V170
Fuel   Diesel
Number of cylinders   18
Operating cycle   4 cycle
Gross horsepower** @ 1900 rpm 3,500 HP 2610 kW
Net flywheel power*** @ 1900 rpm 3,346 HP 2495 kW
Weight (wet) 25,897 lb 11750 kg
Weight (dry) 24,795 lb 11250 kg
* Optional Tier 4 emission compliant engine for North American market. Non-emissionized engine for markets outside of North America.
** Gross horsepower is the output of the engine as installed in this machine, at governed rpm and with engine manufacturer’s approved fuel setting. Accessory losses included are water pump, fuel pump and oil pump.
***Net flywheel power is the rated power at the engine flywheel minus the average accessory losses. Accessories include fan and charging alternator. Rating(s) represent net engine performance in accordance with SAE J1349 conditions.

Electric Drive

AC/DC CURRENT
Drive System*.   Komatsu AC Drive
Alternator   Siemens
Dual Fan Main Blower:
Alternator Flow 9,380 cfm 266 m3/min
Wheel Motor Flow 14,800 cfm 419 m3/min
Control   IGBT AC Torque Control System
Ratio   38.12
Speed (maximum) 40 mph 64.5 km/h
* Drive system performance depends upon gross vehicle weight, haul road grade, haul road length, rolling resistance and other parameters. Komatsu must analyze each job condition to assure acceptable application.

Tires and Rims

Rock service, tubeless, radial tires
Standard tire*   56/80 R63
Flange mount rim:
Rim assembly 41'' x 63'' x 5.5'' 1041 mm x 1600 mm x 140 mm
Rims rated at 758 kPa / 110 psi cold inflation pressure.
Typical tire weight 65,154 lb 29553 kg
* Tires should meet application requirements for tkph/tmph, tread, compound, inflation pressure, ply rating or equivalent, etc.
Body

All-welded steel flat floor body with horizontal bolsters and full canopy. Rubber mounts on frame are standard. Eyebrow, body up sling, extended canopy and pivot exhaust heating are optional.

Floor sheet
200,000 psi / 1379 mPa tensile strength steel / Outer 0.63'' 16 mm
Floor sheet
200,000 psi / 1379 mPa tensile strength steel / Center 0.75'' 19 mm
Front sheet
200,000 psi / 1379 mPa tensile strength steel / Outer 0.39' 10 mm
Front sheet
200,000 psi / 1379 mPa tensile strength steel / Center 0.47'' 12 mm
Side sheet
200,000 psi / 1379 mPa tensile strength steel 0.39' 10 mm
Canopy sheet
100,000 psi / 690 mPa tensile strength steel 0.24'' 6 mm
Capacity struck 195 yd3 149 m3
SAE heaped 2:1 280 yd3 214 m3
Standard Komatsu body weight 90,000 lb 40823 kg

Frame

Advanced technology, full butt-welded box sectional ladder-type frame with integral ROPS supports, integral front bumper, rear tubular cross members, steel castings at all critical stress transition zones, rugged continuous horsecollar.
Plate material
tensile strength steel 70,000 psi 482.6 mPa
Casting material
tensile strength steel 90,000 psi 620.5 mPa
Rail width 12'' 305 mm
Rail depth (minimum) 34'' 864 mm
Top and bottom plate thickness 1.77'' 45 mm
Side plate thickness / Rear 0.98'' 25 mm
Side plate thickness / Front 1.26'' 32 mm
Drive axle mounting   Pin and spherical bushing
Drive axle alignment   Swing link between frame and axle

Braking System

Service brakes: Oil-cooled, hydraulic actuated, multiple disc brakes at each wheel
Traction system   Wheel Spin-Slide Control
Max. service apply pressure 2750 psi 18960 kPa
Total friction area per brake 16,078 in2 103729 cm2
Secondary brakes   Automatically applied prior to hydraulic system pressure dropping below level required to meet secondary stopping requirements.
Wheel brake locks   Switch activated
Parking brakes   Multiple disc, spring-applied, hydraulically-released, dry brakes on inboard end of each wheel motor rotor shaft. Rated to hold on +-15% grade at maximum gross vehicle weight
Electric dynamic retarder 6,196 HP 4620 kW
Continuously rated high-density blown grids w/retard capacity at low speeds and retard in reverse.
Suspension

Variable rate hydro-pneumatic with integral rebound control

Max. front stroke 12.92'' 328 mm
Max. rear stroke 9.40'' 239 mm
Max. rear axle oscillation   ±6.5°

Service Capacities

Cooling System 190 U.S. gal 719 L
Crankcase 90 U.S. gal 341 L
Hydraulic system 350 U.S. gal 1325 L
Motor gear box (each) 37 U.S. gal 140 L
Fuel tank 1400 U.S. gal 5300 L

Hydraulic System

Steering   Accumulator assisted with twin double acting cylinders provide constant rate steering. Secondary steering automatically supplied by accumulator.
Turning circle diameter (SAE) 105' 32 m
Reservoir 250 U.S. gal 947 L
Filtration   In-line replaceable elements
Suction   Single, full flow, 100 mesh
Hoist and steering   Dual, in-line, high pressure
Brake component cabinet   Above deck, easily accessible with diagnostic test connections
Hoist   Two 3-stage dual-acting outboard cylinders, internal cushion valve, over-center dampening
Hoist times:
Power-up loaded   24 sec
Power-down   14 sec
Float-down empty   24 sec
Pumps   Two pumps, single package, in-line
Hoist and brake cooling   Tandem gear pump with output of 931 lpm / 246 gpm at 1900 rpm and 18960 kPa / 2750 psi
Steering and brake   Pressure-compensating piston pump with output of 246 lpm / 65 gpm at 1900 rpm and 20685 kPa / 3,000 psi
System relief pressures:
Hoist and brake cooling 2,500 psi 17237 kPa
Steering and brake 3,000 psi 20685 kPa
Ports available for powering disabled truck and for system diagnostics.
Electrical System

4 x 8D 1450 CCA, 12 volt, in series/parallel, bumper-mounted with disconnect switch.

Alternator   24 volt, 250 amp
Lighting   24 volt
Cranking motors   Two/24 volt

Weight Distribution

Empty vehicle weight:
Front Axle Distribution / 49.5% 272,250 lbs 123490 kg
Rear Axle Distribution / 50.5% 277,750 lbs 125985 kg
Total EVW 550,000 lbs 249475 kg
Gross vehicle weight:
Front Axle Distribution / 33% 419,100 lbs 190104 kg
Rear Axle Distribution / 67% 850,900 lbs 385968 kg
Nominal GVW 1,270,000 lbs 576072 kg
Nominal Payload 720,000 lbs (360 short tons) 326585 kg (327 metric tons )
Nominal payload is defined by Komatsu America Corp’s payload policy documentation. In general, the nominal payload must be adjusted for the specific vehicle configuration and site application.
The figures above are provided for basic product description purposes.
Please contact your Komatsu distributor for specific application requirements.
