Komatsu HD465-7

Double tap to zoom



Features

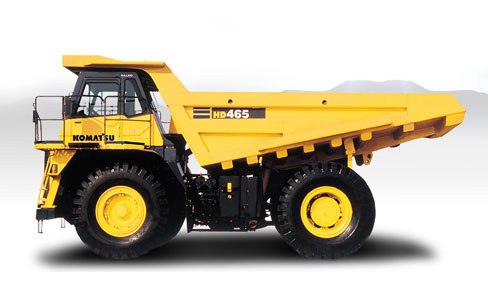

715 net hp drive the 61 ton capacity HD465-7. A very tight turning radius and hydro-pneumatic suspension makes the HD465-7 very maneuverable in close working areas. Cast-steel in high stress areas on the frame give the truck the durability and reliability mines demand today. Two working modes and a seven speed fully automatic transmission with lock-up and skip shift give the HD465-7 power and speed to meet today’s production levels.

Specifications

Engine

Model   Komatsu SAA6D170E-5
Type   Water-cooled, 4-cycle
Aspiration   Turbo-charged, air-to-air after-cooled, cooled EGR
Number of cylinders   6
Bore x stroke 6.69" x 6.69" 170 mm x 170 mm
Piston displacement 1,413 in3 23.15 ltr
Horsepower:
SAE J1995 739 HP 551 kW
ISO9249/SAE J1349 715 HP 533 kW
Rated rpm.   2000 rpm
Fan drive type   Mechanical
Maximum torque 2,452 lb. ft 339 kg•m
Fuel system   Direct injection
Governor   Electronically controlled
Lubrication system
Method   Gear pump, force-lubrication
Filter   Full-flow type
Air cleaner   Dry type with double elements and precleaner (cyclonpack type), plus dust indicator
Transmission

Torque converter   3-elements, 1-stage, 2-phase
Transmission   Full-automatic, planetary type
Speed range   7 speeds forward and 1 reverse
Lockup clutch   Wet, multiple-disc clutch
Forward   Torque converter drive in 1st gear, direct drive in 1st lockup and all higher gears
Reverse   Torque converter drive
Shift control   Electronic shift control with automatic clutch modulation in all gears
Maximum travel speed 43.5 mph 70.0 km/h
Axles

Rear Axle Full-floating
Final drive type Planetary gear
Ratios:
Differential 3.538
Planetary 4.737

Suspension System

Independent, hydropneumatic suspension cylinder with fixed throttle to dampen vibration.
Effective cylinder stroke (front suspension) 11.9" 303 mm
Rear axle oscillation:
Oil stopper   6.8°
Mechanical stopper   7.7°

Steering System

Type   Fully hydraulic power steering with two double-acting cylinders
Supplementary steering   Manually controlled (meets ISO 5010, SAE J1511 and SAE J53)
Minimum turning radius 27'11" 8.5 m
Maximum steering angle (outside tire)   39°
Cab

Dimensions comply with ISO 3471 and SAE J1040-1988c ROPS (Roll-Over Protective Structure) standards.

Main Frame

Type Box-sectioned structure

Brakes

Brakes meet ISO J3450 and SAE J1473 standards.
Service brakes:
Front   Full-hydraulic control, caliper disc type
Rear   Full-hydraulic control, oil-cooled multiple-disc type
Parking brake   Spring applied, multiple-disc type
Retarder   Oil-cooled, multiple-disc rear brakes act as retarder.
Secondary brake   Manual pedal operation. When hydraulic pressure drops below the rated level, parking b rake is automatically actuated.
Brake surface:
Front 300 in2 1936 cm2
Rear 9,956 in2 64230 cm2

Body

Capacity:
Struck 32.7 yd³ 25.0 m³
Heaped (2:1, SAE) 44.7 yd³ 34.2 m³
Payload 61 U.S. tons 55 metric tons
Material (high tensile strength steel) 184,900 psi 130 kg/mm²
Structure   V-shape body with V-bottom
Material thickness:
Bottom 0.75" 19 mm
Front 0.47" 12 mm
Sides 0.35" 9 mm
Target area: (inside length x width) 21'2" x 12'8" 6450 mm x 3870 mm
Dumping angle   48°
Height at full dump 28'10" 8800 mm
Heating   Exhaust heating

Hydraulic System

Hoist cylinder   Twin, 2-stage telescopic type
Relief pressure 2,990 psi 210 kg/cm²
20.6 MPa
Hoist time   11.5 sec

Weight

Empty weight 95,020 lb 43100 kg
Max. gross vehicle weight:
Standard tire (Not to exceed max. gross vehicle weight, including options, fuel and payload) 219,760 lb 99680 kg
Weight distribution:
Empty:
Front axle   47%
Rear axles   53%
Loaded:
Front axle   32.00%
Rear axles   68.00%
Tires

Standard tire 24.00-35-36PR

Service Refill Capacities

Fuel tank 206.1 U.S. Gal 780 ltr.
Engine oil 21.1 U.S. Gal 80 ltr.
Torque converter, transmission and retarder cooling 56.8 U.S. Gal 215 ltr.
Differential 25.1 U.S. Gal 95 ltr.
Final drives (total) 11.1 U.S. Gal 42 ltr.
Hydraulic system 32.2 U.S. Gal 122 ltr.
Suspension (total) 14.7 U.S. Gal 55.6 ltr.
