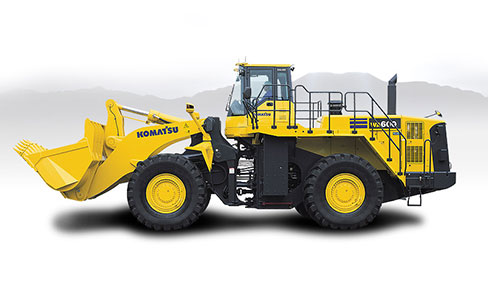

Komatsu WA600-6

Double tap to zoom



Features

The WA600-6 has two features that make it standout as a top producer in quarries across North America. The operator uses his left pedal to control the modulated clutch which makes it easy to control the massive tractive effort to reduce tire slippage, reduce shift shock and control speed when truck loading. Advanced joystick control puts fast but precise control at the operator’s left hand.

Specifications

Engine

Model   Komatsu SAA6D170E-5
Type   Water-cooled, 4-cycle
Aspiration   Turbocharged, aftercooled, cooled EGR
Number of cylinders   6
Bore x stroke 6.69" x 6.69" 170 mm x 170 mm
Piston displacement 1413 in³ 23.15 ltr
Governor   all-speed, electronic
Horsepower:
SAEJ1995 - Gross 530 HP 396 kW
ISO 9249 / SAEJ1349 - Net 527 HP 393 kW
Hydraulic fan at maximum speed 502 HP 374 kW
Rated rpm   1800 rpm
Fan drive method for radiator cooling   Hydraulic
Fuel system   Direct injection
Lubrication system:
Method   Gear pump, force lubrication
Filter   Full-flow type
Air cleaner   Dry type with double elements and dust evacuator, plus dust indicator
Transmission

Torque converter Type   3-element, single-stage, double-phase
Transmission Type   Full-powershift, planetary type
Travel speed measured with 35/65-33 tires: Forward Reverse
1st 4.2 mph  4.5 mph
  6.7 km/h 7.3 km/h

2nd 7.3 mph  8.0 mph
  11.7 km/h 12.8 km/h

3rd 12.6 mph  13.7 mph
  20.3 km/h 22.0 km/h

4th 21.0 mph  23.0 mph
  33.8 km/h 37.0 km/h
Axles and Final Drives

Drive system   Four-wheel drive.
Front   Fixed, full-floating.
Rear   Center-pin support, full-floating, 26° total oscillation.
Reduction gear   Spiral bevel gear.
Differential gear   Conventional type
Final reduction gear   Planetary gear, single reduction

Brakes

Service brakes:   Hydraulically actuated, wet disc brakes actuate on four wheels
Parking brake:   Wet disc brake
Emergency brake   Parking brake is commonly used

Steering System

Type   Articulated type, full-hydraulic power steering
Steering angle   43° each direction.
Minimum turning radius at the center of outside tire 23'3" 7075 mm
Hydraulic System

Steering system:
Hydraulic pump   Piston pump
Capacity at rated rpm 43.1 U.S. gal/min 163 ltr/min
Relief valve setting 4,980 psi 350 kgf/cm²
Hydraulic cylinders:
Type   Double-acting, piston type
Number of cylinders   2
Bore x stroke 4.5" x 20" 115 mm x 510 mm
Loader control:
Hydraulic pump   Piston pump
Capacity at rated rpm 63.1 + 63.1 U.S. gal/min 239 + 239 ltr/min
Relief valve setting 4,980 psi 350 kgf/cm²
Hydraulic cylinders:
Type   Double-acting, piston type
Number of cylinders: Bore x Stroke Bore x Stroke
Boom cylinder / 2 7.9" x 42" 200 mm x 1067 mm
Bucket cylinder / 1 8.9" x 30.6" 225 mm x 776 mm
Control valve   2-spool type
Control positions:
Boom   Raise, hold, lower, and float
Bucket   Tilt-back, hold, and dump
Hydraulic cycle time (rated load in bucket)
Raise   9.3 sec
Dump   2.3 sec
Lower (Empty)   4.1 sec

Service Refill Capacities

Cooling system 38.8 U.S. gal 147 ltr
Fuel tank 189.7 U.S. gal 718 ltr
Engine 22.7 U.S. gal 86 ltr
Hydraulic system 117.0 U.S. gal 443 ltr
Axle (each front and rear) 41.0 U.S. gal 155 ltr
Torque converter and transmission 21.9 U.S. gal 83 ltr
