Features

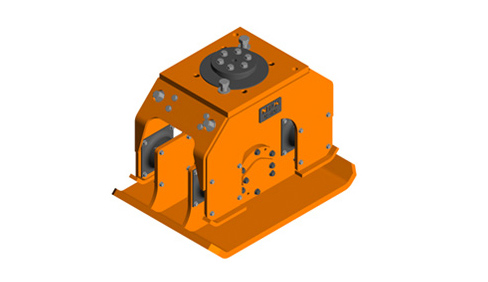

NPK Construction Compactor and Construction Driver actually deliver on the promise of greater cost-efficiency and jobsite versatility - operating advantages that are absolutely required by today's contractors and budget-conscious municipalities. Utilizing your carrier's hydraulic system, you save on fuel as well as the need for other costly machines and equipment, using your versatile NPK Construction Compactor and Construction Driver for:

  • Compacting or driving anywhere a boom can go, and often where a man cannot.
  • Driving pile, wood and aluminum sheering, fence posts, guardrail posts, rail and I-beams, piling and seawalls, etc.
  • Soil and aggregate compaction.
  • Trench compaction, as deep as a bucket can dig
  • Steep slope compaction
  • Waste compaction at transfer stations, etc.
  • Breaking up frozen coal, salt and other material.
  • Extracting piling and sheeting

Specifications

Impulse Force 34,000 lbf 15,450 kgf
Cycles per Minute 2,200 2,200
Oil Flow Required (standard) 40- 55 gpm 150 - 210 lpm
Oil Flow Required (Low Flow Option) Consult NPK Consult NPK
Operating Pressure 2,000 - 2,500 psi 140 -170 bar
Swivel Feature OPTIONAL OPTIONAL
Baseplate Dimensions 40 x 52 in / narrow baseplate - special order 102 x 132 cm / narrow baseplate - special order
Compaction Area 14.5 sq ft / narrow baseplate - special order 1.3 sq m / narrow baseplate - special order
Height 50 in 1,270 mm
Width 40 in 1,016 mm
Bracket Inside Width Varies with carrier Varies with carrier
