Trail King Steel Side Dump

Double tap to zoom



Features

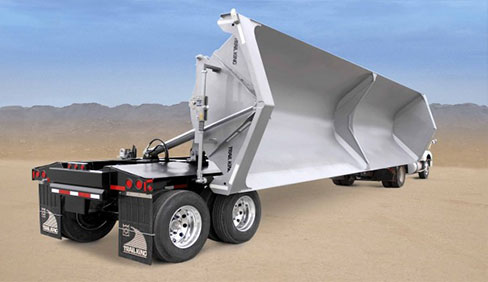

Two-Piece Rolled Tub
The abrasion-resistant tub is constructed of two rolled pieces of Hardox 450. The round bottom delivers fast, clean dumping of the load away from the trailer, with no “carry back.” The fewer weld seams associated with this design minimize the likelihood of cracking. Best of all,
this tub design results in weight savings of several hundred pounds.

New Formed Top Rail
Large formed top rail resists twisting and flexing of tub. This new design provides 2x the flex resistance of previous models. (Note: Electric and manual tarp systems are available as options.)

Twin 5" Cylinders
Twin, 5" bore, single-stage, 3000 PSI cylinders offer maximum stability when dumping. The single-stage cylinders are very low-maintenance. Their two-pin mounting makes them easily removable if they need to be repaired or replaced.

One-Piece I-Beam Construction
Trail King I-beams are constructed of one-piece web and flange material. The result is a mainframe that is stronger, with less twisting and load “bounce... all of which reduces opportunity for the frame to develop cracks.

Lock-Down Retainers
The lock-down retainers feature an extended alignment guide so the pivot bushing returns to sit perfectly in the pivot saddle every time. The larger bearing surfaces reduce wear and provide full contact with the pivot bar for a stronger, more secure lock down. All pivot points are mounted on fullwidth I-beam cross members for the most load-bearing strength possible.

Bolt-On Push Block
(Standard) Also available with pintle hitch.

Shaped Cross Members
All cross members are full depth. Cross members in the main frame area are mounted at an angle. This exclusive Trail King design helps distribute stress over a larger area. The result is the flexible strength necessary to handle your toughest hauling requirements.

New Flexible Fenders
Rugged, flexible, impact-absorbent plastic fenders (front and rear) shed falling debris to protect both the trailer and the wheels.

Control Kit
Trail King Side Dump trailers come standard with a trailer-mounted cab control kit. Truck-mounted cab control kits are available as optional equipment.

Specifications

STANDARD EQUIPMENT*

TK40SSD-202P
Design payload = 40,000 lbs,
Number of axles = 2
Overall Length = 20' 0"
Tub Length = 18" 0"
Overall Height = 9' 4"
Capacity (water level) = 11.5 cu.yds
Capacity (full) = 15.5 cu.yds
Kingpin To Center of Last Axle (axle to axle) = 25' 6"
18' 0" -  Hardox 450 Abrasion Resistant Tub
5" Dia. Hydraulic Cylinders
3-Leaf Spring Suspension
Automatic Slack Adjusters w/ 16 1/2" x 7" Air Brakes
8.25 x 22.5 Steel Wheels
11R22.5 x 14 Radial Tires
Pin Style Landing Gear
Impact-absorbent Plastic Fenders - Front & Rear
Lightweight Push Block
Incandescent Lights
Empty weight = 12,745 lbs.

TK40SSD-302
Design payload = 40,000 lbs,
Number of axles = 2
Overall Length = 29' 6"
Tub Length = 28' 0"
Overall Height = 9' 4"
Capacity (water level) = 17.3 cu.yds
Capacity (full) = 24 cu.yds
Kingpin To Center of Last Axle = 25' 6"
28' 0" -  Hardox 450 Abrasion Resistant Tub
5" Dia. Hydraulic Cylinders
3-Leaf Spring Suspension
Automatic Slack Adjusters w/ 16 1/2" x 7" Air Brakes
8.25 x 22.5 Steel Wheels
11R22.5 x 14 Radial Tires
Pin Style Landing Gear
Impact-absorbent Plastic Fenders - Front & Rear
Lightweight Push Block
Incandescent Lights
Empty weight = 12,745 lbs.

TK60SSD-362
Design payload = 60,000 lbs,
Number of axles = 2
Overall Length = 35' 6"
Tub Length = 34' 0"
Overall Height = 9' 4"
Capacity (water level) = 21 cu.yds
Capacity (full) = 29 cu.yds
Kingpin To Center of Last Axle = 31' 6"
34' 0" -  Hardox 450 Abrasion Resistant Tub
5" Dia. Hydraulic Cylinders
3-Leaf Spring Suspension
Automatic Slack Adjusters w/ 16 1/2" x 7" Air Brakes
8.25 x 22.5 Steel Wheels
11R22.5 x 14 Radial Tires
Pin Style Landing Gear
Impact-absorbent Plastic Fenders - Front & Rear
Lightweight Push Block
Incandescent Lights
Empty weight = 14,010 lbs.

TK60SSD-402
Design payload = 60,000 lbs,
Number of axles = 2
Overall Length = 39' 6"
Tub Length = 34' 0"
Overall Height = 9' 4"
Capacity (water level) = 21 cu.yds
Capacity (full) = 29 cu.yds
Kingpin To Center of Last Axle = 35' 6"
34' 0" -  Hardox 450 Abrasion Resistant Tub
5" Dia. Hydraulic Cylinders
3-Leaf Spring Suspension
Automatic Slack Adjusters w/ 16 1/2" x 7" Air Brakes
8.25 x 22.5 Steel Wheels
11R22.5 x 14 Radial Tires
Pin Style Landing Gear
Impact-absorbent Plastic Fenders - Front & Rear
Lightweight Push Block
Incandescent Lights
Empty weight = 14,310 lbs.

TK60SSD-433
Design payload = 60,000 lbs,
Number of axles = 3
Overall Length = 42' 11"
Tub Length = 36' 0"
Overall Height = 9' 4"
Capacity (water level) = 23 cu.yds
Capacity (full) = 31 cu.yds
Kingpin To Center of Last Axle = 38' 11"
36' 0" -  Hardox 450 Abrasion Resistant Tub
5" Dia. Hydraulic Cylinders
3-Leaf Spring Suspension
Automatic Slack Adjusters w/ 16 1/2" x 7" Air Brakes
8.25 x 22.5 Steel Wheels
11R22.5 x 14 Radial Tires
Pin Style Landing Gear
Impact-absorbent Plastic Fenders - Front & Rear
Lightweight Push Block
Incandescent Lights
Empty weight = 16,350 lbs.

TK60SSD-484
Design payload = 60,000 lbs,
Number of axles = 4
Overall Length = 47' 11"
Tub Length = 36' 0"
Overall Height = 9' 4"
Capacity (water level) = 23 cu.yds
Capacity (full) = 31 cu.yds
Kingpin To Center of Last Axle = 43' 6"
36' 0" -  Hardox 450 Abrasion Resistant Tub
5" Dia. Hydraulic Cylinders
3-Leaf Spring Suspension
Automatic Slack Adjusters w/ 16 1/2" x 7" Air Brakes
8.25 x 22.5 Steel Wheels
11R22.5 x 14 Radial Tires
Pin Style Landing Gear
Impact-absorbent Plastic Fenders - Front & Rear
Lightweight Push Block
Incandescent Lights
Empty weight = 19,240 lbs.

*All dimensions and weights are approximate and subject to change without notice.
