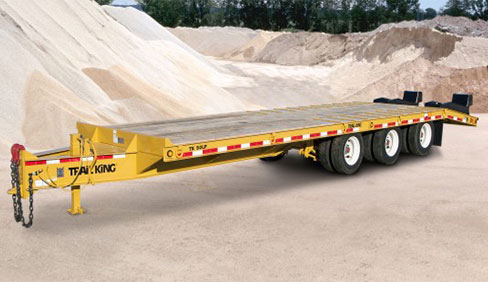

Trail King Tag

Double tap to zoom



Features

Adjustable Pintle Hitch
To accommodate a wide variety of towing vehicles, Trail King tags come with an adjustable 4-bolt pintle hitch. Heavy duty safety chains with grab hooks are standard.

Lockable Toolbox
The conveniently located toolbox is roomy enough to store chains and tools and, because it is lockable, it is secure enough for you to do so with confidence.

I-Beam Cross Members
Cross members consist of 65,000 psi-yield I-beams on 16" centers (12" centers for the TK50) for maximum strength and deck life.

Drop Leg Jack
Ha 12,000-lb. drop leg jack with spring foot is standard equipment on all Trail King tag trailers.

Safety Headboard
The safety headboard is reinforced on the front side to provide an extra dimension of safety and load-hauling security.

Heavy-Duty D-Rings
Trail King includes heavy-duty 6" drop forged D-rings as standard equipment... not optional, as is the case with many manufactures... so your tag is ready to handle even your toughest hauling requirements.

One-Piece Construction
Trail King I-beams are constructed of one-piece web and flange material and welded on all four sides to seal and protect the seams from rust. The result is an I-beam that is not only stronger but lasts longer.

Oak Deck
Trail King tags are decked with 2" nominal oak decking, not pine, and double screwed to cross members to prevent cupping. As a result, your deck will stand up to years of rugged service.

Lightweight Ramps
Lift one and see for yourself... Trail King self-supporting 60" ramps with spring assist are lightweight, strong and easy to handle. Choose between standard ladder-type or optional wood-filled.

Axles, Wheels, and Tires
Truck-type axles and wheels, oil seal hubs, and radial tires are standard equipment. So you not only get the right equipment for the job, you also get less down time, easier maintenance, and long service life.

60" Beavertail
Rather than the 36" or 48" beavertails found on other tags, Trail King's beavertail is a full 60", allowing for a lower load angle and increased loading ease and safety.

Protected Electrical System
Trail King tags feature rubber-mounted, shock-proof, sealed lights and rubber grommets wherever wiring runs through the frame for a longer, trouble-free, low-maintenance performance life.

Specifications

STANDARD EQUIPMENT*

TK20LP TAG

STANDARD EQUIPMENT
8'-6" wide deck
5' tongue
Pintle eye (adjustable height (17 3/4" to 29")
33 1/4" loaded deck height
(2) 10,000 lb. capacity GD axles
Electric brakes
Slipper spring suspension
Dual 6 x 16 8-hole steel disc wheels
ST235/85R16 - 10 ply tires
12,000 lb HD jack with spring foot
(10) D-rings
5' Ladder style ramps
Spring assist for ramps
Maximum adjustable ramps
Safety chains with grab hooks
Lockable tool box
Head board
4" I-beam cross members on 16" centers
Registration holder
LED lights
Rubber mounted sealed lights with sealed harness system
Electrical system per DOT regulations
24' Deck (19' flat with 5' beavertail)
1-1/2" Oak (raised) decking
Self-cleaning beavertail (includes mud flaps)
Red and white conspicuity markings
Paint: Trail King 2-part polyurethane

TK24LP TAG

STANDARD EQUIPMENT
8'-6" wide deck
5' tongue
Pintle eye (adjustable height (18 1/4" to 29 1/2")
33 1/4' loaded deck height
(2) 12,000 lb. capacity axles
Dual 6 x 16 8-hole steel disc wheels
ST235/85R16 - 10 ply tires
12,000 lb HD jack with spring foot
(10) D-rings
5' Ladder style ramps
Spring assist for ramps
Maximum adjustable ramps
Safety chains with grab hooks
Lockable tool box
Head board
4" I-beam cross members on 16" centers
Registration holder
LED lights
Rubber mounted sealed lights with sealed harness system
Electrical system per DOT regulations
24' Deck (19' flat with 5' beavertail)
1-1/2" Oak (raised) decking
Self-cleaning beavertail (includes mud flaps)
Dexter Slipper Spring suspension
Electric brakes
Red and white conspicuity markings
Paint: Trail King 2-part polyurethane

TK40LP TAG

STANDARD EQUIPMENT
8'-6" wide deck
5' tongue
Pintle eye (adjustable height (16 3/4" to 32 1/2")
32" loaded deck height
(2) 20,000 lb. capacity axles
4-spring suspension
12 1/4" X 7 1/2" air brakes
4S2M ABS anti-lock brakes
Dual 6.75 x 17.5 8-hole disc wheels
12,000 lb HD jack with spring foot
(10) D-rings
5' Ramps with spring assist
Maximum adjustable ramps
Safety chains with grab hooks
Lockable tool box
Head board
4" I-beam cross members on 16" centers
Registration holder
LED lights
Rubber mounted sealed lights with sealed harness system
Electrical system per DOT regulations
26' Deck (21' flat with 5' beavertail, 5' ramps)
1-1/2" Oak (raised) decking
Self-cleaning beavertail (includes mud flaps)
Ladder Style ramp
215/75R17.5 - 16 ply (tire only) (per tire)
Red and white conspicuity markings
Paint: Trail King 2-part polyurethane

TK50LP TAG

STANDARD EQUIPMENT
8'-6" wide deck
Pintle eye (adjustable height (12 1/4" to 28")
32" loaded deck height
(3) 20,000 lb. capacity axles
6-spring suspension, 51.5" axle spacing
12 1/4" X 7 1/2" air brakes
4S2M ABS anti-lock brakes
Dual 6.75 x 17.5 8-hole disc wheels
12,000 lb HD jack with spring foot
(10) D-rings
5' ramps with spring assist
Maximum adjustable ramps
Safety chains with grab hooks
Lockable tool box
Head board
4" I-beam cross members on 12" centers
Registration holder
LED lights
Rubber mounted sealed lights with sealed harness system
Electrical system per DOT regulations
30' Deck (25' flat with 5' beavertail), 5' tongue
1-1/2" Oak (raised) decking
Self-cleaning beavertail (includes mud flaps)
Ladder Style ramp
215/75R17.5 - 16 ply (tire only) (per tire)
Red and white conspicuity markings
Paint: Trail King 2-part polyurethane

  * All specifications are subject to change without notice.
