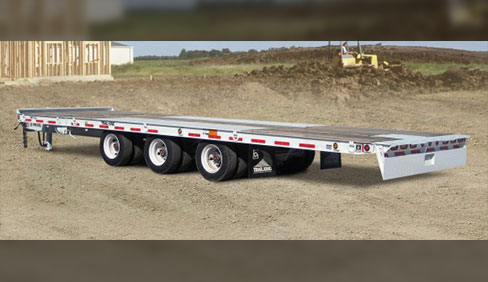

Trail King Tilt

Double tap to zoom



Features

Adjustable Pintle Hitch
To accommodate a wide variety of towing vehicles, Trail King tilt trailers come with an adjustable 4-bolt pintle hitch. Heavy duty safety chains with grab hooks are standard.

Safety Headboard
The 4" safety headboard provides an extra dimension of safety and load-hauling security, the headboard is reinforced on the front side.

Heavy-Duty D-Rings
Trail King includes heavy-duty 6" drop forged D-rings as standard equipment... not optional, as is the case with many manufacturers... With four on the stationary deck and eight on the tilt deck.

Drop Leg Jack
A 12,000-lb. drop leg jack with spring foot is standard equipment on all Trail King tilt trailers.

Adjustable Bed Lock
The bed lock mechanism with safety lock pin keeps the deck from accidentally tilting while in the transport position and, because it is adjustable, always ensures a snug, secure closure.

Platform Cushioning Cylinders
Single (for model TKT24) or dual platform cushioning cylinders (for models TKT40LP and TKT50) make loading and unloading a smooth, easy operation.

One-Piece I-Beam
Because Trail King's one-piece continuous I-beam mainframe is stronger than designs that incorporate C-channel or spliced components, you can load, unload, and haul with complete confidence.

Oak Deck
Trail King tilt trailers are decked with 1 1/2" nominal oak decking, not pine, and double screwed up to cross members to prevent cupping. As a result, your deck will stand up to years of rugged service.

I-Beam Cross Members
Cross members are full-width I-beams, not C-channel. And, because the mainframe and cross members are primed and painted with two-component polyurethane primer and paint before decking is installed, you get both strength and long-lasting durability.

Protected Electrical System
Trail King tilts feature rubber-mounted, shock-proof, sealed lights and rubber grommets wherever wiring runs through the frame for a longer, trouble-free low-maintenance performance life.

Axles, Wheels, and Tires
Truck-type axles and wheels, oil seal hubs, and radial tires are standard. So you not only get the right equipment for the job, you also get less down time, easier maintenance, and long service life.

Fold-Down Approach Plate
Trail King's patented tail with fold-down approach plate is designated to meet U.S. Federal under-ride protection requirements, achieve the lowest possible load angles, and provide extra protection for tail lights.

Specifications

STANDARD EQUIPMENT*

TKT24 Tilt Trailer

STANDARD EQUIPMENT
24,000 lbs. capacity
5' tongue
Pintle eye (adjustable height - 18 ½" to 29 3/4")
12,000 lb HD jack with spring foot
24' Tilt deck with 4' Stationary
102" wide
33" loaded deck height
1-1/2" Oak (raised)
  (12) D-rings (4-stat. deck, 8-tilt deck)
Tilted deck slope - 12 degree
3 1/2" X 16" platform cushioning cylinder
Manual lock
3/16" floor plate on approach plate and fold under
11" fold-down approach plate and under ride protection
 (2) 12,000 lb. capacity axles
Spring suspension
ST235/85R x 16 16-ply tires
Dual steel wheels
Safety chains with grab hooks
Lockable tool box
Head board
I-beam cross members on 16" centers
Registration holder
LED lights
Rubber mounted sealed lights with sealed harness system
Electrical system per DOT regulations
Mud flaps
Red and white conspicuity markings
Paint: Trail King 2-part polyurethane

TKT40LP Tilt Trailer

STANDARD EQUIPMENT
40,000 lbs. capacity
5' tongue
Pintle eye (adjustable height - 15" to 30 3/4")
12,000 lb HD jack with spring foot
24' Tilt deck with 4' Stationary
102" wide
32 1/2" loaded deck height
1-1/2" Oak (raised)
 (12) D-rings (4-stat. deck, 8-tilt deck)
Tilted deck slope - 12 degree
(2) 3 1/2" X 16" platform cushioning cylinders
Manual lock
1/4" floor plate on approach plate and fold under
11" fold-down approach plate and under ride protection
 (2) 20,000 lb. capacity axles
12 1/4' X 7 1/2" air brakes
4S2M ABS
Spring suspension
6.75 X 17.5 dual wheels
215/75R17.5 - 16 ply tires
Safety chains with grab hooks
Lockable tool box
Head board
I-beam cross members on 12" centers
Registration holder
LED lights
Rubber mounted sealed lights with sealed harness system
Electrical system per DOT regulations
Mud flaps
Red and white conspicuity markings
Paint: Trail King 2-part polyurethane

TKT50 Tilt Trailer

STANDARD EQUIPMENT
50,000 lbs. capacity
Pintle eye (adjustable height - 15" to 30 3/4")
4 bolt pintle eye with 20,000 lb vertical capacity and
      100,000 lb. pull capacity
12,000 lb HD jack with spring foot
24' Tilt deck with 6' Stationary
102" wide
32 1/2" loaded deck height
1-1/2" Oak (raised)
(12) D-rings (4-stat. deck, 8-tilt deck)
Tilted deck slope - 12 degree
(2) 3 1/2" X 16" platform cushioning cylinders
Manual lock
1/4" floor plate on approach plate and fold under
11" fold-down approach plate and under ride protection
 (3) 20,000 lb. capacity axles
12 1/4' X 7 1/2" air brakes
4S2M ABS
Spring suspension, 51.5" axle spacing
6.75 X 17.5 dual wheels
215/75R17.5 - 16 ply tires
Safety chains with grab hooks
Lockable tool box
Head board
I-beam cross members on 12" centers
Registration holder
LED lights
Rubber mounted sealed lights with sealed harness system
Electrical system per DOT regulations
Mud flaps
Red and white conspicuity markings
Paint: Trail King 2-part polyurethane

 * All specifications are subject to change without notice.
