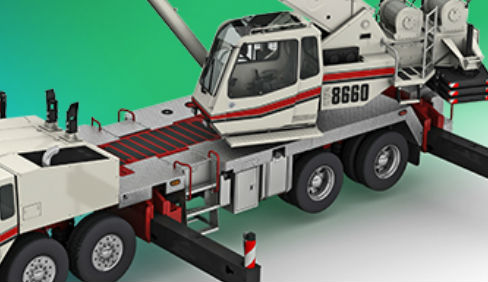

Link-Belt HTC-8660 Series II

Double tap to zoom



Features

  • Excellent transportability - can be configured to meet some of the toughest transportation laws
  • both fly options feature THREE offset positions of 2°, 20°, and 40°
  • "Stow 'n go" outrigger pontoons are easily secured for transport
  • next generation operator's cab with improved visibility and ergonomics
  • Pull-out CabWalk for easy access to and from the operator's cab
  • Integral air conditioning - optional
  • Large swing out engine hood doors for ease of service
  • Full length aluminum fenders
  • Job site travel with counterweight

Specifications

60 USt (50 mt) HYDRAULIC TRUCK Crane

  • 35.5 - 110 ft (10.8 - 33.5 m) 4-section boom
  • Optional 28.5 - 51 ft (8.7 - 15.5 m) two-piece offsettable fly
  • 167 ft (50.9 m) maximum tip height
  • Height: 11 ft 6.69 in (3.52 m)
    Width: 8 ft 6 in (2.59 m)
    Length: 43 ft 6.38 in (13.27 m)
  • 19 ft 3 in (5.86 m) wheel base
  • Front tires: 425/65R22.5
    Rear tires: 11R22.5
  • ZF AS Tronic 12-speed automated transmission
  • Outrigger spread: 20 ft 6.25 in (6.25 m)
  • Outrigger base: 19 ft 10.32 in (6.05 m)
  • Maximum winch line pull: 15,871 lbs (7 199 kg)
  • Maximum winch line speed: 502 fpm (153.2 m/min)
