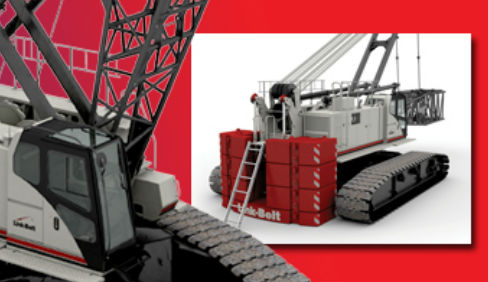

Link-Belt 238 HSL

Double tap to zoom



Features

  • Standard free fall wet brake winches with automatic brake, 26mm wire rope front & rear
  • All main boom extensions common with 238 H5
  • Hook and pin side frames
  • Larger, roomier cab with standard modern features
    • HSL capacity limiter with full color graphic display
    • Rear view camera system with color monitor
    • Easy to read backlit gauges
    • Integral air-conditioning and heating
  • 7-piece modular counterweight design
    • Innovative and fast counterweight removal system
  • Optional remote sensing - download vital data
  • Range control
  • Standard upper guard rails
  • Bullet-proof hydraulic pilot-operated controls¬†

Specifications

150 USt (137 mt) LATTICE CRAWLER Crane

  • 50-260 ft (15.24-79.25m) tube boom
  • 230 + 80 ft (70.10 + 24.38m) maximum boom & jib combination
  • Luffing boom: 165 ft (50.29m)
  • Luffing jib: 150 ft (45.72m)
  • Fixed jib: 30 ft (9.14m) (30 US ton capacity)
  • Track Gauge: 17.72 ft (5.4m)
  • Track Length: 25.96 ft (7.91m)
  • Cummins QSB 6.7 Tier 4 Final power 270 hp (201 kW)
  • Max line pull: 46,924 lbs (21 285 kg)
  • Operating weight: 262,677 lbs (119 148 kg)
