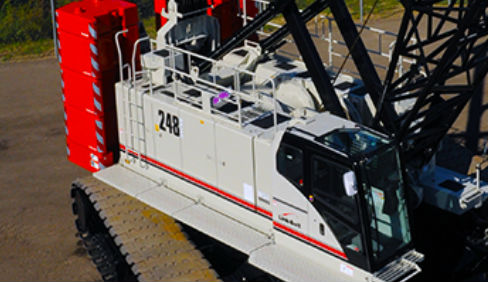

Link-Belt 248 HSL

Double tap to zoom



Features

  • Larger, roomier cab with standard modern features
    • HSL capacity limiter with full color graphic display
    • Rear view camera system with color monitor
    • Easy to read backlit gauges
    • Integral air-conditioning and heating
    • Foot travel pedals
  • Cummins QSB 6.7 Tier 4 Final power 270 hp (201 kW)
  • 9-piece modular counterweight design with innovative and quick HSL-style counterweight removal
  • Hook and hydraulic pin side frames
  • Range control
  • Standard upper guard rails
  • Bullet-proof hydraulic pilot-operated controls
  • Boom design includes bar-type pendants. Pendants and boom connecting pins store on each extension for ease of transport
  • Superior capacities in its class

Specifications

200 USt (181.44 mt) LATTICE BOOM CRAWLER CRANE
ATTACHMENT:

  • 55 to 285 ft (16.76 - 86.87 m) conventional boom
  • 30 to 100 ft (9.14 - 30.48 m) fixed jib - new design can be installed as fixed jib on conventional boom or as fixed jib on the luffing jib
  • 100 to 160 ft (30.48 - 48.77 m) luffing boom
  • 80 to 180 ft (24.38 - 54.86 m) luffing jib

GENERAL DIMENSIONS:

  • Track width: 44 in (1.12 m)
  • Track gauge: 17 ft 8.6 in (5.4 m)
  • Crawler length: 27 ft 4.66 in (8.35 m)
  • Max tail swing: 16 ft 10.76 in (5.15 m)
  • Max line pull: 46,924 lbs (21 285 kg)
  • Upper width: 10 ft 4.02 in (3.15 m)
  • Main unit transportation weight: 88,305 lbs (40 055 kg) (estimate)
