Link-Belt RTC-80130 Series II

Double tap to zoom



Features

Key Features:

  • Full power latching style boom with marketing leading capacity for its class
  • Innovative 10 ft (3.0m) fly is integral to one of the on-board fly options.
    Over 20 tons (18.1mt) capacity and two load line lift procedures.

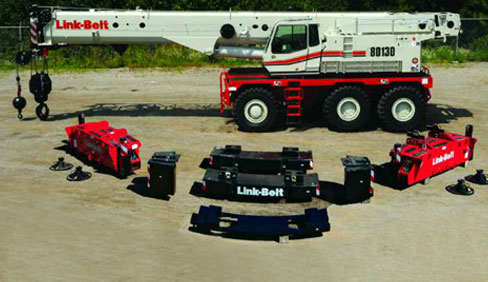

  • Counterweight consists of modular-style counterweights for multiple transport and lift scenarios
  • Boom wear pads have Teflon pucks that lubricate the boom sections (No grease)
  • Four fly options feature four offset positions of 2°, 15°, 30°, and 45°
  • Next generation operator’s cab with improved visibility and ergonomics
  • Integral air conditioning - optional
  • Proven six-wheel hydrostatic drive with fully independent hydraulic suspension
  • 4-mode steering controlled from the steering wheel
  • Full-length flat deck with integrated steps and handholds
  • Large swing out engine hood doors for ease of service
  • Access ladders and folding guardrails

Specifications

130 UST (120 MT) ROUGH TERRAIN CRANE

  • 41.4-162 ft (12.6-49.3m) five section boom
  • Optional 31 – 55 ft (9.4 – 16.8m) two piece bi-fold manual offsettable fly
  • Optional 10 – 31 – 55 ft (3.0 – 9.4 – 16.8m) three piece bi-fold manual offsettable fly
  • Optional three 18 ft(5.5m) fly extensions plus 55 ft (16.7m) offsettable fly
    [Total attachment length is 109 ft (33.2m)]
  • 278 ft (84.7m) maximum tip height
  • 43,000 lbs (18 505kg) of counterweight
  • 21,022 lbs (9 535.4kg) maximum winch line pull
  • 431 fpm (131.4m/min) maximum winch line speed
  • Six hydrostatic wheel motors
  • 23.5R25 tires
