Topcon Sitelink3D

Double tap to zoom



Features

Can’t get hold of an operator? Don’t know where your machines are located? A sudden change in today’s task assignments?

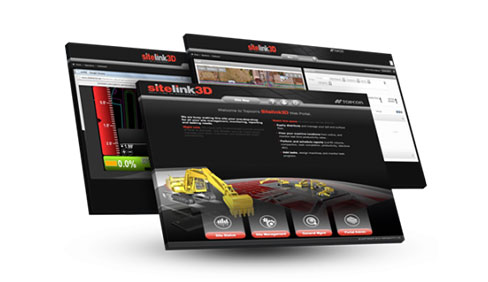

Sitelink3D brings you that connectivity and control. Sitelink3D gives tabular views of project crews, their exact position, activities, files in use, plus a myriad of other functions. A simple key stroke allows the user to interact with any specific machine connected to the system.

  • Text messaging and file transfer
  • Visibility and tracking
  • Remote access and support
  • Reporting and analysis

Specifications

General
Supply Voltage 9-32VDC
Housing Cast Aluminum
Dimensions 164 x 160 x 64mm
Weight 2.2lbs (1kg)
Operating Temperature -30°C to +70°C
Dust/Water Protection IP67
Ports
RS-232
10/100 Ethernet Port
CANOpen Port (50Kbps to 1Mbps)
CAN J1939 Port (50Kbps to 1Mbps)
Communications
GMS/GPRS 850/900/1800/1900 Mhz
HSxPA 850/1900/2100 MHz
Mesh Networking 802.11s at 400mW (100mW in Europe)
802.11b Access Point with 64bit WP encryption
Connectors
Deutsch DTM06 12 pin - Power, Ground, Serial
Deutsch DTM06 12 pin - Ethernet, CAN
RP-TNC - Cellular/Mesh radio antenna
TNC - GNSS or LPS antennas
