Trimble Spectra Precision Laser LL100N

Double tap to zoom



Features

A leveling crew in a case for the small contractor

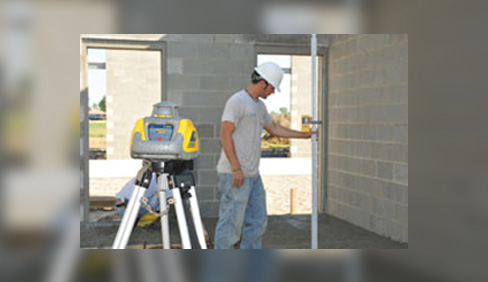

The Spectra Precision® Laser LL100N is a complete one man leveling crew in a case. A complete system is contained in a single hard-shelled, portable carrying case - the laser, receiver, clamp, tripod, and grade rod - for easy transportation, storage, and use. A standard case with laser and receiver only is also available. Automatic, self-leveling ensures fast, accurate setups. Easy, one-button operation requires minimal training.

The LL100N laser is capable of handling a wide variety of elevation control applications. Versatility is added with single-axis manual slope capability for setting out driveways, ramps, and residential drainage lines. It is rugged enough for the toughest jobsite and designed to survive a 3 foot (1 m) drop onto concrete. The LL100N is backed by a 3-year instant over the counter exchange warranty.

Features & Benefits:

  • Automatic self-leveling increases productivity with fast setups and minimal training
  • One person elevation control up to 1150 ft (350 m) away increases productivity
  • Durable construction can withstand tough jobsite conditions
  • Height of Instrument alert stops laser rotation if elevation changes occur to avoid erroneous readings
  • HR320 receiver offers 2 accuracies and has grade displays front and rear
  • Exclusive 3-year limited warranty with instant "over the counter" exchange policy eliminates downtime

Applications:

  • General elevation control
  • Checking and setting elevations for smaller jobsites
  • Leveling forms and footers
  • Estimating cuts and fills
  • Ideal for decks, terraces, pools, and septic systems
  • Basic slopes for driveways, ramps, and residential drainage

Specifications

  • Laser Source: 650 nm visible, Class 2
  • Laser Accuracy: ±1/8 in at 100 ft (±3 mm at 30 m)
  • Operating Range: 1,150 ft (350 m) diameter with receiver HR320
  • Self-leveling Range: ±5 degrees
  • Compensation Method: Electronic self-leveling
  • Drop Height on Concrete performance: 3 ft (1 m)
  • Single Axis Manual Slope Mode: Yes
  • Out-of-level warning: Rotor stops, laser shuts off, red out-of-level LED flashes
  • Power source: 2 x “D” Alkaline Batteries
  • Battery life: 80 hours Alkaline
  • Battery Status LED: Flashing red LED
  • Rotation speed: 600 RPM
  • Tripod Mount (Horizontal and Vertical): 5/8” x 11
  • Operating temperature: 23 °F to 113 °F (-5 °C to 45 °C)
  • Storage temperature: -4 °F to 158 °F (-20 °C to 70 °C)
  • Water resistant: Yes, and IP54 sealing
  • Size: 8.5L × 6.7W × 6.0H in (21.6L × 17.1W × 15.2H cm)
  • Weight: 3.3 lbs (1.5 kg)
  • Warranty: 3 Year Limited with Instant Exchange
