Trimble Spectra Precision Laser HL700 Laserometer

Double tap to zoom



Features

Highly versatile receiver for basic and advanced leveling and aligning applications

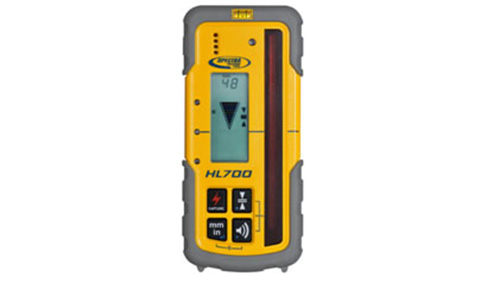

HL700 The Spectra Precision® Laser HL700 Laserometer, a highly versatile laser receiver for basic and advanced leveling and aligning applications, is designed for general, concrete and site preparation contractors. The HL700 is an easy-to-use tool that accurately measures elevations across the site, and is ideal for use with any rotating transmitter.

The HL700 features a digital readout of elevation that provides a numeric display of +/- 5 cm (+/- 2 inches). The readout is displayed on the large front and rear LCD's and shows exactly how far the elevation is from on-grade. Accurate measurements can be made without moving the rod clamp, saving time and increasing productivity. Selectable units of measure can be displayed meeting your application - mm, cm, ft, in or fractional inches.

A 12.7 cm (5 inch) reception height, more than double the industry standard, allows quick acquisition of the laser beam. An anti-strobe sensor prevents false readings from site strobe lights.

The Laserometer is designed to survive the tough construction site conditions; it is totally waterproof and can withstand a drop of 3 meters (10 feet) onto concrete. The HL700 offers a 3-year "No Excuses" warranty.

The HL700 can be used as either a hand-held or rod mounted receiver for a wide range of applications.

Features and Benefits:

  • Digital readout of elevation - not only will high or low arrows be displayed, but the exact distance from grade will be numerically displayed, which eliminates the need to get "on-grade" to make measurements.
  • Large 12.7 cm (5 inch) reception height acquires the beam quickly and makes it easy to stay in the beam.
  • Anti-strobe sensor stops construction strobe lights from setting off the receiver, and makes it easier to identify true laser beam signals.
  • Simultaneous elevation LED's signal in low light levels and over a longer range for easier reading in poor light conditions.
  • New CAPTURE function remotely captures and retains a measurement when the display is difficult to see.
  • Multiple deadband setting allows adaptation to meet all your jobsite requirements.
  • Dust and weatherproof housing withstands a drop of up to 3 m (10 ft) onto concrete for reduced downtime.
  • Two clamp positions for cut/fill or excavation. Excavation mode puts more reception height and elevation information above grade for higher utilization in digging and staking applications.

Applications:

Setting and checking jobsite elevation and depth for:

  • Cut and fills
  • General grading
  • Foundations, forms, and footings
  • Excavations

Specifications

Working Radius:   1 m - 460 m (3 ft - 1500 ft)
(Laser dependent):
Laser Detection Height: 127.0 mm (5“)
Numeric Readout Height: 102.0 mm (4“)
Accuracy (Dead band):
      Ultra Fine 0.5 mm    0.02 in    1/32 in
      Super Fine 1.0 mm    0.05 in    1/16 in
      Fine 2.0 mm    0.10 in    1/8 in
      Medium 5.0 mm    0.20 in    1/4 in
      Coarse 10.0 mm  0.50 in    1/2 in
      Calibration 0.1 mm    0.01 in    1/64 in
Reception Angle: ± 45° minimum
Detectable Spectrum: 610 nm ... 780 nm
Beeper Volumes: Loud = 110 dBA
Medium = 95 dBA
Low = 65 dBA
LED Grade Indicators: Front, Green on-grade,
Red Hi, Blue Low
Power Supply: 2 x 1.5 Volt “AA” batteries
Battery Life: 60+ hours
Automatic Shut Off: Selectable, 30 min, 24 h, Off
Environmental: Waterproof, Dustproof to IP67
Weight without clamp: 371 g (13.1 oz.)
Dimensions without
clamp: 168.0 x 76.0 x 36.0 mm
(6.6” x 3.0” x 1.4”)
Operating Temperature: -20°C...+60°C (-4°F... +140°F)
Storage Temperature: -40°C...+70°C (-40°F...+158°F)

*Specifications subject to change without notice.
