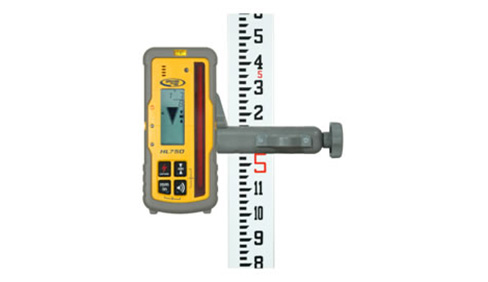

Trimble Spectra Precision Laser HL750 Laserometer

Double tap to zoom



Features

Highly versatile receiver for basic and advanced leveling and aligning applications

HL750 The Spectra Precision® Laser HL750 Laserometer is a highly versatile laser receiver for basic and advanced leveling and aligning applications. It is designed for general, concrete and site preparation contractors. The HL750 measures elevations across the site, and is ideal for use with any rotating transmitter.

The HL750 features a digital readout of elevation that provides a numeric display of ± 5 cm (± 2 inches). The readout is displayed on the large front and rear LCD's and shows exactly how far the elevation is from on-grade for fast and easy cut/fill readings. Accurate measurements can be made without moving the rod clamp, saving time and increasing productivity. Selectable units of measure can be displayed meeting your application - mm, cm, ft, in or fractional inches.

A 12.7 cm (5 inch) reception height, more than double the industry standard, allows quick acquisition of the laser beam. An anti-strobe sensor prevents false readings from site strobe lights.

Radio communication allows working with another HL750 for long range remote display and monitoring capability. The HL750 also communicates with the GL512 and GL522 Grade Laser for PlanLok and Grade Matching capabilities.

The Laserometer is designed to survive the tough construction site conditions; it is totally waterproof and can withstand a drop of 3 meters (10 feet) onto concrete. The HL750 offers a 3-year "No Excuses" warranty.

Features and Benefits:

  • Digital readout of elevation not only will high or low arrows be displayed, but the exact distance from grade will be numerically displayed, which eliminates the need to get "on-grade" to make measurements.
  • Large 12.7 cm (5 inch) reception height acquires the beam quickly and makes it easy to stay in the beam.
  • Works with another HL750 for long range wireless remote display and monitoring even when the second receiver is out of sight (up to 80 m or 260 ft.)
  • Machine operators can monitor elevation shots taken by another person or foremen can monitor elevations and cut/fill readings from anywhere on the job site.
  • Anti-strobe sensor stops construction strobe lights from setting off the receiver, and makes it easier to identify true laser beam signals.
  • Multiple dead-band setting allows adaptation to meet all your job site requirements.
  • Dust and weatherproof housing withstands a drop of up to 3 m (10 ft) onto concrete for reduced downtime.
  • Two clamp positions for cut/fill or excavation. Excavation mode puts more reception height and elevation information above grade for higher utilization in digging and staking applications.

Applications:

  • Remote grade checking with cable free Remote Display
  • Wireless monitoring of foundations and steel erections
  • Risk free monitoring of tilt up wall position

Setting and checking job site elevation and depth for:

  • Cut and fills
  • General grading
  • Foundations, forms, and footings
  • Excavations

Specifications

Working Radius: 1 m - 460 m (3 ft - 1500 ft)
(Laser dependent):
Laser Detection Height: 127.0 mm (5“)
Numeric Readout Height: 102.0 mm (4“)
Internal Radio: Full 2-way communication, operation
and security lock with paired device
Radio Working Radius: Up to 80 m (260 ft), depending on
orientation, conditions and paired device
Accuracy (Deadband):
      Ultra Fine 0.5 mm    0.02 in    1/32 in
      Super Fine 1.0 mm    0.05 in    1/16 in
      Fine 2.0 mm    0.10 in    1/8 in
      Medium 5.0 mm    0.20 in    1/4 in
      Coarse 10.0 mm  0.50 in    1/2 in
      Calibration 0.1 mm    0.01 in    1/64 in
Reception Angle ± 45° minimum
Detectable Spectrum: 610 nm ... 780 nm (HL750)
520 nm ... 780 nm (HL750U)
Beeper Volumes: Front, Green on-grade,
Red Hi, Blue Low
Power Supply: 2 x 1.5 Volt “AA” batteries
Battery Life: 60+ hours
Automatic Shut Off: Selectable, 30 min, 24 h, Off
Environmental: Waterproof, Dustproof to IP67
Weight without clamp: 371 g (13.1 oz.)
Dimensions without
clamp: 168.0 x 76.0 x 36.0 mm
(6.6” x 3.0” x 1.4”)
Operating Temperature: -20°C...+60°C (-4°F... +140°F)
Storage Temperature: -40°C...+70°C (-40°F...+158°F)

*Specifications subject to change without notice.
