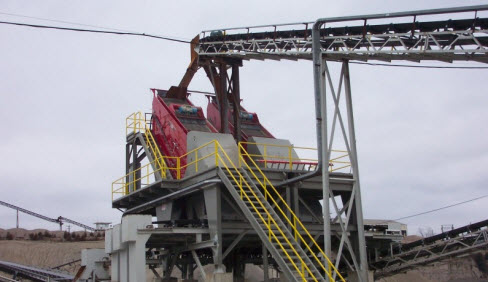

Astec Mobile Screens offers the PEP 6’ x 18’ series of Duo-Vibe® high frequency screens. These screens provide the material producer with a scalper top deck and high frequency bottom deck for pre-screening and/or fines removal applications. Various configurations for the screens are available in both portable & stationary structures, as well as mobile screening plants depending on model.
One of the many advantages a high frequency screen provides the material producer is the ability to achieve higher production rates with more efficient sizing when compared to conventional screens. The higher production is achieved by an aggressive screen vibration applied directly to the screen media. The high level of vibrating RPMs allows for the material to stratify and separate at a much higher rate.
Double Deck: 5’ x 15’ top scalper deck; 6’ x 18’ bottom high frequency deck Three (3) - 5’ x 5’ panels on top deck Three (3) - 6’ x 6’ panels on bottom deck Weight.............................8,500 lbs.*
Triple Deck: 5’ x 15’ top scalper deck; 6’ x 18’ middle high frequency deck; 6’ x 12’ bottom high frequency deck Three (3) - 5’ x 5’ panels on top deck Three (3) - 6’ x 6’ panels on middle deck Two (2) - 6’ x 6’ panels on modified bottom deck Weight...........................14,500 lbs.*
*Weights include all chutes and hoppers
