Features
Specifications

Features

FEATURES

Certified quality
Very sturdy
Shock and vibration proof
100% waterproof according to IP69K
Heated lens for the best image in all weather conditions
Special hard coating to prevent scratches
Auto-brightness
Armored cable made for heavy-duty applications
2 years warranty

AVAILABLE SETS

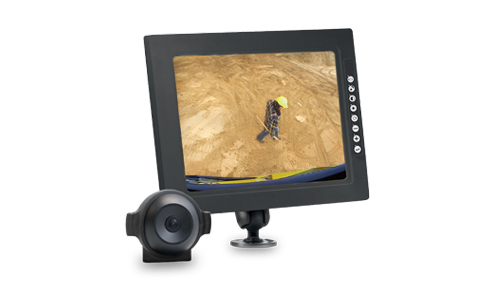

TRV 1112-1 - Kit 12’’ Orlaco with monitor, cable and camera
TRV 1112-2 - Kit 12’’ Orlaco with monitor, cables and 2 cameras
TRV 1112-3 - Kit 12’’ Orlaco with monitor, cables and 3 cameras
TRV 1112-4 - Kit 12’’ Orlaco with monitor, cables and 4 cameras
TRV 1112-4SV - Kit 12’’ Orlaco Surround View with monitor, cables and 4 cameras

Specifications

SPECIFICATIONS

Camera

Monitor

Input Voltage: 12 - 24 VDC
Operating Temperature: -40°C to +85°C
Light Sensitivity: <0,05 lux
Vibration Resistance: 50G
Protection Class: Watertight IP68 & IP69K
Dimensions: ø55 mm
Weight: 0,21 kg
Connector: Orlaco 4-pins male
Cable: 0,5 m multi-cable
Housing: High impact automotive synthetic
thermoplastic
polymer

Input Voltage: 18 - 30 VDC
Operating Temperature: -40°C to +85°C
Display: Automotive 12,1in TFT-LCD module with LED
backlight
Resolution: XGA 1024 x R. G. B. x 768 pixels
OSD Menu: Yes, in 8 languages
Vibration Resistance: 50G
Protection Class: Watertight IP67
Dimensions: 236,3 x 298,3 x 35,4 mm
Weight: 2,9 kg (incl. cables & bracket)
Connector: Orlaco 7-pins female (camera input)
Cable: 6 m video multi-cable, 6 m power multi-cable
Housing: Aluminium & high impact automotive
synthetic
thermoplastic
polymer
