Terex/Cedarapids System 200 Modular Plant

Double tap to zoom

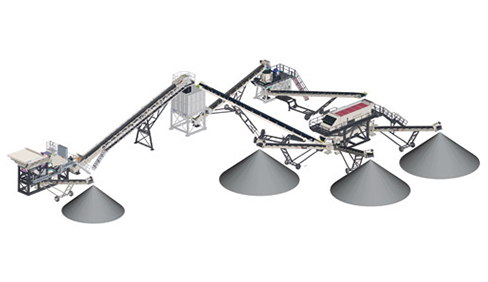

Terex® Minerals Processing Systems has launched a new Modular Product Line in response to customer feedback. The System 200 Modular Crushing and Screening Plant consists of several pre-designed static and semi-static “plug and play” modules. This simple but effective product line gives flexibility to customers to choose “ready to work” modular crushers and modular screens to create the plant needed for a variety of applications. The System 200 has the capability to process up to 200 tph (180 mtph).

All modules are designed to fit and work together interchangeably. Set-up time and ease of operation is aided by the simplicity of the modular product range. All of our modular crushers and modular screens bolt together on site and require minimal on-site wiring. Designed with logistics in mind, each module, including all its components, can be transported in one or two containers.


Module Structures
• Bolt together on site, quick set up time with basic tools
• Pre-wired “plug and play” design, minimal on-site wiring
• Robust weather-protected control panels with user-friendly controls
• Galvanized steel structures including walkways, steps and guard rails
• Extra heavy-duty I-beam frames
• Rigid diagonal truss construction
• CE compliant module structures and components
• Packed for container shipment for site installation and set-up
MJ42 Jaw Module
• Rugged Terex® JW42 jaw crusher for high production
• Hydraulic wedge jaw closed side setting adjustment
MC1000 Cone Module
• Terex 40" (1000mm) cone chamber handles “all in feed”
• All roller bearing design for outstanding crushing efficiency
MV2000 VSI Module
• Terex® Canica VSI2000SD single drive vertical shaft impactor
• Produces highly cubical products and eliminates soft material
MHS6203 Horizontal Screen Module
• Terex® Cedarapids LJ-TS 6' x 20' (6.1m x 1.8m) 3-deck screen
• High efficiency El-JayTM oval stroke design
MIS6203 Inclined Screen Module
• Terex® 6' x 20' (6.1m x 1.8m) 3-deck inclined screen
• Robust four-bearing design for high capacity screening
MSF24 Surge Hopper Module
• 57 ton (52 tonne) live capacity with level control tilt switch
• Terex® Simplicity vibrating pan feeder with variable speed
