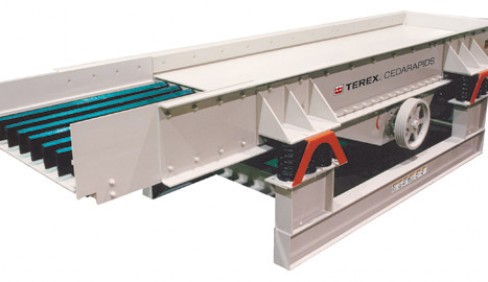

Terex/Cedarapids Advantage Series VGF

Double tap to zoom



Features

  • Welded steel box
  • Bolt-on ARS side liners and pan liners
  • Tubular reinforced feeder pan
  • Outboard front and rear spring mounting
  • Spring supports bolted to feeder box
  • Vibrator unit huck-bolted to feeder box
  • Unbalanced, counter-rotating vibrator unit shafts
  • Spherical self-aligning roller bearings
  • Adjustable timing gear concentrates vibration at feed end, centrally or discharge end
  • Oil-bath lubrication
  • Versatile bolt-together grizzly assembly with adjustable bar spacing and angle tip
  • Tapered, heavy-duty, abrasion resistant grizzly bars horizontally mounted

Specifications


Weight lbs (kg)
Width in x Length  ft
(m x m)
Engine Power hp (kW)
VGF 3517-12 Feeder
9,000 (4082)
35" x 17' (900x5200)
30 (22)
VGF 4217-12 Feeder
10,000 (4536)
42" x 17' (1100x5200)
40 (30)
VGF 4220-15 Feeder
11,200 (5080)
42" x 20' (1100x6100)
40 (30)
VGF 5217-12 Feeder
11,200 (5080)
52" x 17' (1320x5200)
40 (30)
VGF 5220-15 Feeder
12,500 (5670)
52" x 20' (1320x6100)
40 (30)
