Terex Finlay C-1540 Dual Power

Double tap to zoom

Cone Crushers C-1540 Dual Power
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features

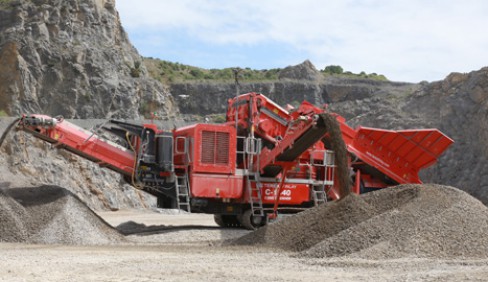

The dual powered Terex Finlay C-1540 cone crusher offers operators the flexibility to power the plant either by mains electric connection or the onboard genset powerpack configuration. Either power option presents operators with significant power, servicing and maintenance cost savings.
This energy efficient and productive machine incorporates the proven Terex® 1000 cone crusher with direct electric drive, automatic tramp relief and hydraulic closed side setting (CSS) adjustment.
The dual powered Terex Finlay C-1540 can be fitted with an optional patented pre-screen module which allows fines materials to bypass prior to being fed to the crushing chamber offering better wear rates in the crushing chamber.
The large hopper/feeder has an automated metal detection and a purge system to protect the cone and reduce downtime by removing metal contaminants via the purge chute.
Additional benefits include, rapid set up time, ease of maintenance, high reduction ratio, high output capacity and advanced electronic control system.
- The plant’s electrically driven power systems provide significant cost advantages and efficiencies.
- Superior performance in dusty applications and in high altitude environments.
- Optional pre-screen module maximises production and reduces wear on the chamber by removing fine material before it enters the cone.
- Metal detection system on feed belt with ‘auto-stop’ protects the cone from tramp metal and the purge system removes contaminants from the machine.
Specifications
Tier 2 Equivalent:
Scania DC09 257kW (350hp)
Stage IIIA Constant Speed:
Scania DC09 273kW (365hp)
Tier 4F / Stage IV:
Scania DC09 257kW (350hp)
Cone Head Diameter:
1000 mm
(40")
Transport Weight:
45,320kg
(99,914lbs)
