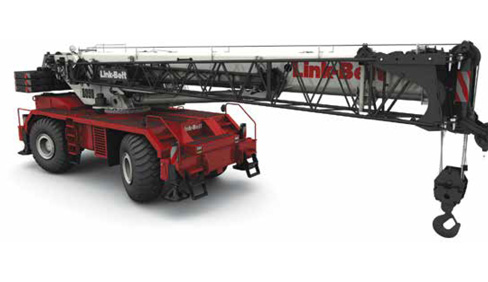

Link-Belt RTC 8090 Series II

• Full power latching style boom with market leading capacity for its class
• Counterweight consists of one or an option for three 9,600 lbs (4 354.5 kg) counterweights for multiple transport and lift scenarios
• Boom wear pads have Teflon pucks that lubricate the boom sections (no grease)
• Four fly options feature four offset positions of 2°, 15°, 30°, and 45°
• Next generation operator's cab with improved visibility and ergonomics
• Integral air conditioning - optional
• 4-Link suspension on the rear axle with an optional Hydro-Gas Ride™ system
• 4-mode steering controlled from the steering wheel
• Full-length flat deck with integrated steps and handholds
• Large swing out engine hood doors for ease of service
• Access ladders and folding guardrails

90 UST (80 MT) ROUGH TERRAIN CRANE

• 38 - 140 ft (11.6 - 42.7 m) five section boom
• Optional 35 - 58 ft (10.7 - 17.7 m) two-piece offsettable fly
• Optional two 16 ft (4.8 m) extensions plus 58 ft (17.7 m) two-piece offsettable fly
  [Total attachment length is 90 ft (27.4 m)]
• 238 ft (72.5 m) maximum tip height
• Height: 12 ft 6 in (3.8 m)
  Width: 10 ft 9 in (3.3 m)
  Length: 47 ft 6 in (14.5 m)
• 14 ft 4 in (4.37 m) wheel base
• 29.5 x 25-28PR tires
• Spicer power shift 6-speed transmission
• Outrigger spread: 24 ft 0 in (7.31 m)
  Outrigger base: 24 ft 0 in (7.31 m)
• Maximum winch line pull: 16,880 lbs (7 656.6 kg)
• Maximum winch line speed: 459 fpm (139.9 m/min)
