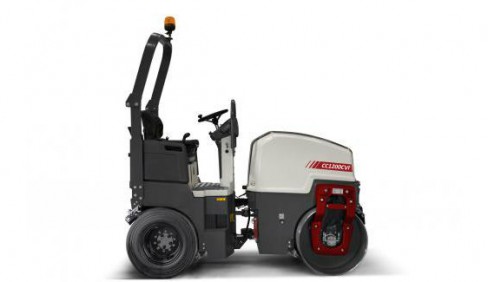

Dynapac CC1100CVI

Double tap to zoom




Optimal visibility over the drums
Efficient LED-lights for night-work
Sliding seat possibilities

Sprinkler system

Pressurized sprinkler system
Large water-tank
3 filtration system
Sprinkler timer


High vibration frequency
Dual frequency
High efficient eccentrics
Powerful Kubota engine


Foldable ROPS
Flexible lifting/towing/tie down
possibilities in the forks
Central lifting point
Optimized machine length for
efficient transportation

Good ergonomics

Low noise
Easy to understand instrument panel
Comfortable vibration damped
operator platform
Driver lever following the sliding seat


Easy accessible daily servicepoints
Reliable sprinkler system
Cross-mounted engine for
best access
Dyn@Link (optional)


Max. operating mass 6,600 lbs
Operating mass (incl. ROPS) 4,900 lbs
Module mass (front/rear) 2,500 lbs/ 2,400 lbs
Speed range 0-10 km/h
Vertical oscillation ±10°
Theor. gradeability 71 %
Wheel load 268 kg/wheel
Tire type (smooth) 640x240-15.6
Centrifugal force 29/25 kN
Nominal amplitude 0.020 in
Static linear load 60 lbs/in
Vibration frequency 66/61 Hz
Water tank 49 gal
Emulsion tank 5.28 gal
Manufacturer/Model Kubota D1703-M (IIIA/T4i)
Type Water cooled
Rated power, SAE J1995 35.0 hp @ 2,800 rpm
Fuel tank capacity 12 gal
Alternative Engine
Manufacturer/Model Kubota D1703-DI (T4f)
Type Water cooled
Rated power, SAE J1995 18.5 kW (25 hp ) @ 2,200 rpm
Alternative Engine
Manufacturer/Model Kubota D1803-CR (T4f)
Type Water cooled
Rated power, SAE J1995 28 kW (37.5 hp ) @ 2,700 rpm
Hydraulic system
Driving Axial piston pump with variable displacement. Radial piston motors with constant displacement.
Vibration Gear pump/motors with constant displacement.
Steering Gear pump with constant displacement.
Service brake Hydrostatic in forward and reverse lever.
Parking/Emergency brake Failsafe multidisc brake on drum and wheels.
