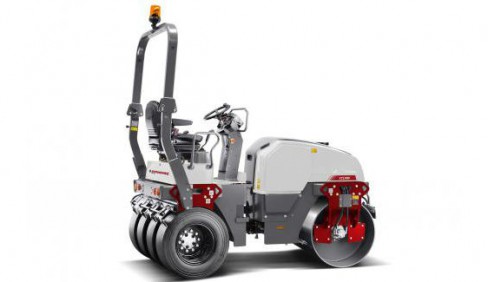

Dynapac CC1300C Plus

Double tap to zoom



DYNAPAC’S SERIES OF ARTICULATED COMPACT TANDEM ROLLERS – the Dynapac CC1100, CC1200 and CC1300 – are designed for compaction on city streets where size and noise matter most. The series have an operating weight of 2,4 tons to 4 tons and are available with double steel vibratory drums or one vibration drum and four static rubber tires - a combi version. All models feature design improvements and an engine, which is quieter than ever.


Max. operating mass 8,600 lbs
Operating mass (incl. ROPS) 8,300 lbs
Module mass (front/rear) 4,300 lbs/ 4,000 lbs
Speed range 0-6 mph
Theor. gradeability 37 %
Wheel load 1003 (lbs/wheel)
Tire type (smooth) 10.5/80-16
Centrifugal force 8,100 lb
Nominal amplitude 0.020 in
Static linear load 83 lbs/in
Vibration frequency 3,180 vpm
Water tank 53 gal
Emulsion tank 10.6 gal
Manufacturer/Model Kubota V2203 IIIA
Type Water cooled
Rated power, SAE J1995 45 hp @ 2,600 rpm
Fuel tank capacity 13 gal
Alternative Engine
Manufacturer/Model Kubota D1803-CR-TE4B (T4f)
Rated power, SAE J1995 37 kW (49 hp ) @ 2,700 rpm
Hydraulic system
Driving Axial piston pump with variable displacement.
Radial piston motors (3) with constant displacement.
Vibration Gear pump/motors with constant displacement.
Steering Gear pump with constant displacement.
Service brake Hydrostatic in forward and reverse lever.
Parking/Secondary brake Failsafe multidisc on drum and wheel motors.
