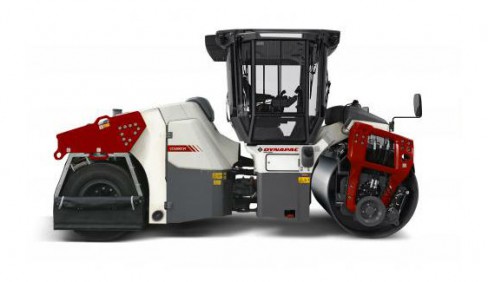

Combi Rollers CC5200C VI
Features
Specifications
| Masses | |
| Max. operating mass | 25,800 lbs |
| Operating mass (incl. ROPS) | 22,700 lbs |
| Module mass (front/rear) | 13,000 lbs/ 9,700 lbs |
| Traction | |
| Speed range | 0-7.5 mph |
| Vertical oscillation | ±7° |
| Theor. gradeability | 35 % |
| Compaction | |
| Wheel load | 2,425 lbs/wheel |
| Centrifugal force (high/low amplitude) | 32,370/ 20,910 lb |
| Nominal amplitude | in |
| Nominal amplitude (high/low) | 0.031/ 0.012 in |
| Static linear load | 170 lbs/in |
| Vibration frequency (high/low amplitude) | 3,060/ 4,020 vpm |
| Water tank | 224 gal |
| Emulsion tank | 53 gal |
| Water tank (front drum steering) | 174 gal |
| Engine | |
| Manufacturer/Model | Cummins QSF3.8 IV/T4f |
| Type | Water cooled turbo Diesel with After Cooler |
| Rated power, SAE J1995 | 130 hp @ 2,200 rpm |
| Fuel tank capacity | 48 gal |
| DEF tank capacity | 4 gal |
| Alternative Engine | |
| Manufacturer/Model | Cummins QSF3.8 IIIA/T3 |
| Type | Water cooled turbo Diesel with After Cooler |
| Rated power [engine 2, rpm] | rpm |
| Rated power, SAE J1995 | 104 kW (140 hp ) @ 2200 rpm |
| Fuel tank capacity | 48 gal |
| Hydraulic system | |
| Driving | Axial piston pump with variable displacement. Radial piston motors (3) with variable displacement. |
| Vibration | Axial piston pump with variable displacement. Axial piston motor with constant displacement. |
| Steering | Gear pump with constant displacement. |
| Service brake | Hydrostatic in forward and reverse lever. |
| Parking/Emergency brake | Failsafe multidisc brake in drum and wheel motors. |
