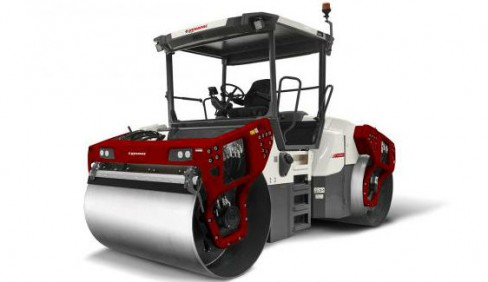

Dynapac CC4200 VI

Double tap to zoom

Double Drum Vibratory Rollers CC4200 VI
Overview:
Operating Mass: 22,000 lbs
SLL (front/rear): 167 pli/167 pli
Drum width: 66 in
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Visibility
Optimal visibility over the drums
Efficient LED-lights for night-work
Sliding seat possibilities
Sprinkler system
Pressurized sprinkler system
Large water-tank
3 filtration system
Sprinkler timer
Performance
High vibration frequency
Dual frequency
High efficient eccentrics
Offset
Powerful Kubota engine
Transportation
Foldable ROPS
Flexible lifting/towing/tie down
possibilities in the forks
Central lifting point
Optimized machine length for
efficient transportation
Good ergonomics
Low noise
Easy to understand instrument panel
Comfortable vibration damped
operator platform
Driver lever following the sliding seat
Serviceability
Easy accessible daily servicepoints
Reliable sprinkler system
Cross-mounted engine for
best access
Dyn@Link (optional)
Specifications
Masses | |
Max. operating mass | 29,000 lbs |
Operating mass (incl. ROPS) | 22,000 lbs |
Module mass (front/rear) | 11,000 lbs/ 11,000 lbs |
Traction | |
Speed range | 0-7.5 mph |
Vertical oscillation | ±7° |
Theor. gradeability | 40 % |
Compaction | |
Centrifugal force (high/low amplitude) | 28,780 lb/18,880 lb |
Nominal amplitude (high/low) | 0.031 in/0.012 in |
Static linear load (front/rear) | 167 pli/167 pli |
Vibration frequency (high/low amplitude) | 3,060 vpm/4,020 vpm |
Water tank | 180 gal/ (233 gal w. opt. watert.) |
Water tank (front drum steering) | 195 gal |
Engine | |
Manufacturer/Model | Cummins QSF3.8 IV/T4f |
Type | Water cooled turbo Diesel with After Cooler |
Rated power, SAE J1995 | 97 kW (130 hp ) @ 2,200 rpm |
Fuel tank capacity | 48 gal |
DEF tank capacity | 4 gal |
Alternative Engine | |
Manufacturer/Model | |
Rated power, SAE J1995 | |
Alternative Engine | |
Manufacturer/Model | |
Hydraulic system | |
Driving | Axial piston pump with variable displacement. Radial piston motors (2) with variable displacement. |
Vibration | Axial piston pumps (2) with variable displacement. Axial piston motors (2) with constant displacement. |
Steering | Gear pump with constant displacement. |
Service brake | Hydrostatic in forward and reverse lever. |
Parking/Emergency brake | Failsafe multidisc brake in both drums. |
